Description

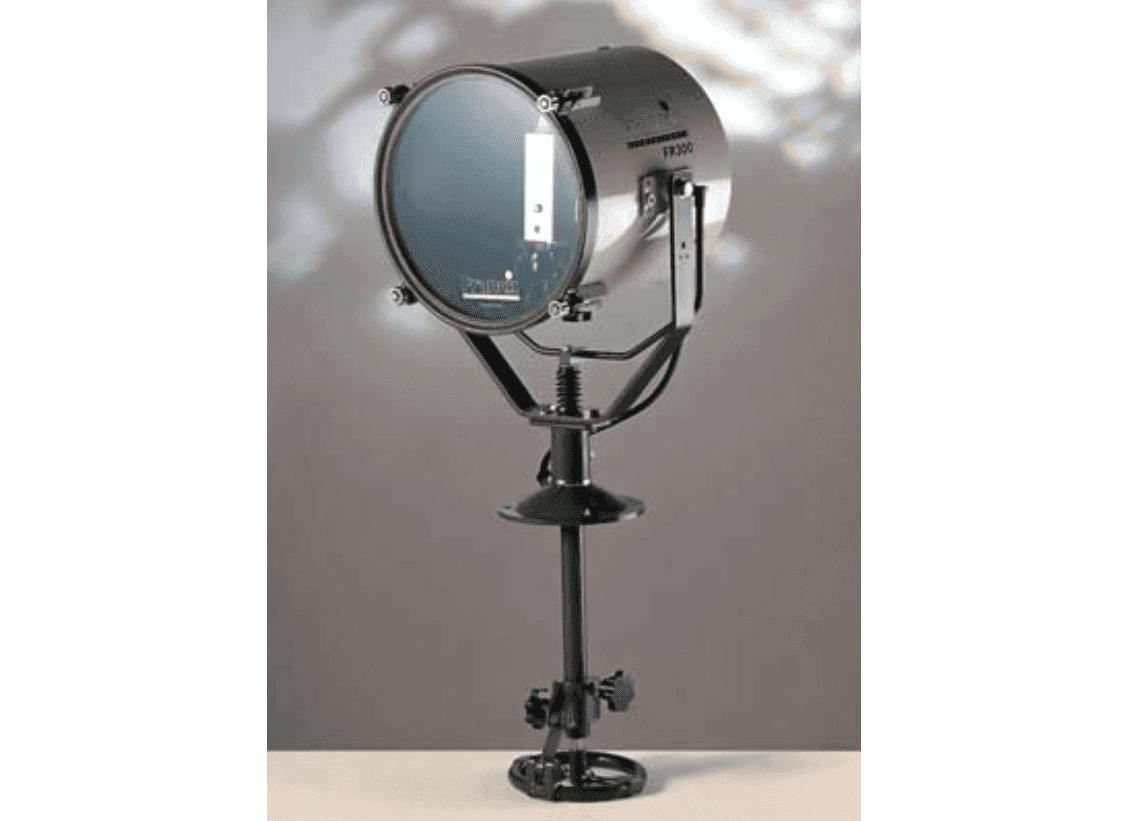

The FRANCIS FH range of searchlights
incorporate the design features required to successfully operate searchlights in the most demanding product operating environments on land and sea.
These units are particularly suitable for use on patrol Craft, custom vessels and security installations.

Deck

PART NUMBERS

Type
FH300 Deck
FH300 Cabin
FH300 Deck Ped. 240v G22 FH300 Cabin Ped.240v G22

Part No A2876 A2877 A2878 A2879

16.5 Kg 18.5 Kg 20.5 Kg 22.5 Kg 9.5 Kg

Weights

Deck
Cabin
Deck Pedestal
Cabin Pedestal
Control Gear (280 x 190 x 182)

Highlights

  • All brass construction.
  • Stove enamel painted.
  • Parabolic glass reflector.
  • Instant lamp re-strike. No cooling down time required.
  • External lamp focus adjustment.
  • Remote focus mechanism available upon request.
  • T oughened front glass.
  • Captive bezel / glass.
  • Light shield to prevent unwanted glare & stray light.
  • Searchlight protected to IP 56
  • Control gear protected to IP66.
  • Special “B” & “C” dimensions available on request.
  • Full 450° rotation.
  • Vertical movement +35° to – 25°.
  • Luminous flux 49000.
  • Colour temperature 6000 K.

Technical specification

Part # SL-1097-FS / SL-1098-FS / SL-1099-FS / SL-1100-FS
Vendor # A2876 / A2877 / A2878 / A2879
Barel size 300mm / 0.98 ft
CBCP 13600
Range @ 1Lux 3685 m / 12089 ft
Voltage 240 V
Wattage 575 W
Mounting Deck
Control Cabin
Electric Zoom No
Lamp G22
Weight 22.5 kg / 49.6 lb
