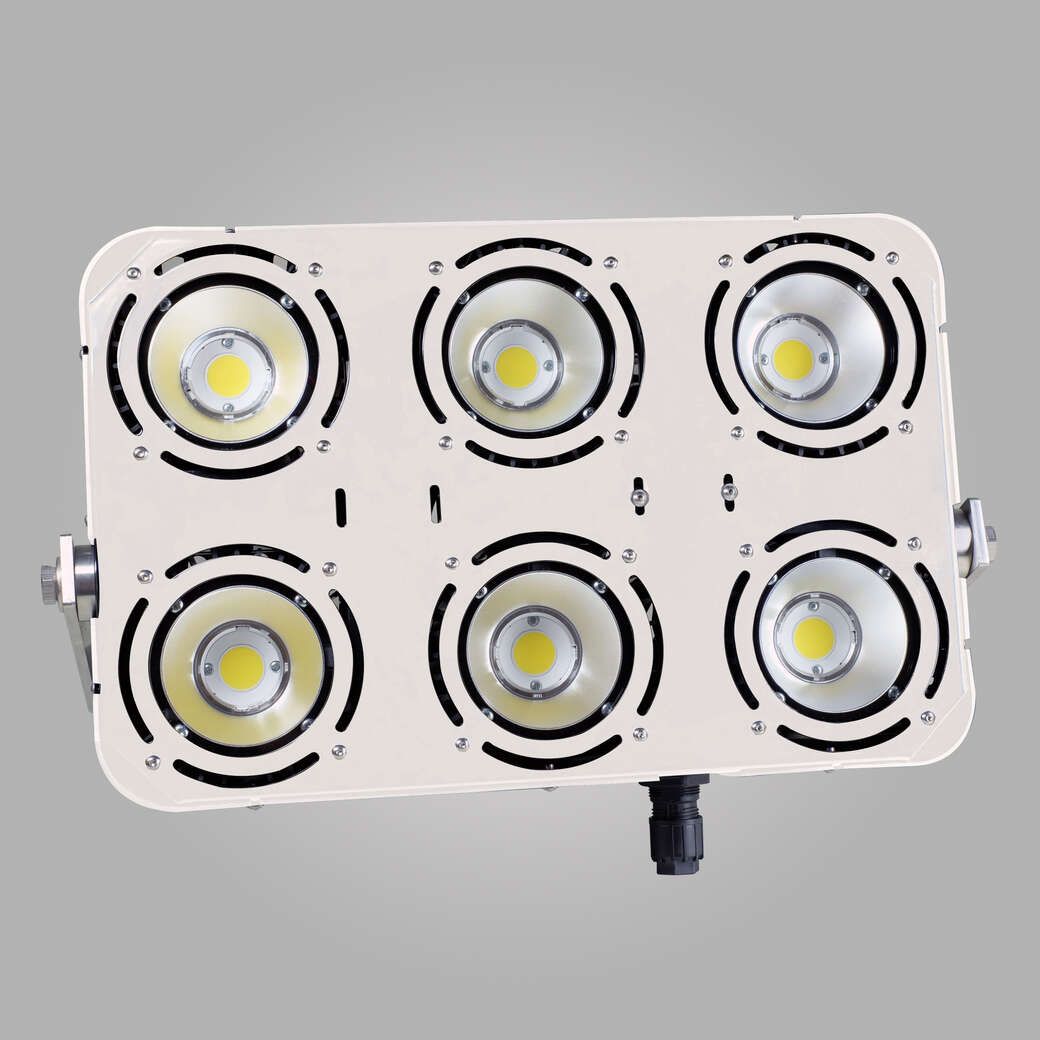

Marine Deck LED Flood Light – ST80XL
50W LED flood light rated IP66/67 for marine and industrial applications. Outputs 36,000 lumens with six LED sources and operates on 120V–277V input. Stainless steel housing resists corrosion in deck, hold, and seaport environments.
The ST80XL is a 50W LED flood light designed as a direct replacement for Metal Halide fixtures in marine and industrial settings. It delivers 36,000 lumens output while consuming significantly less power than traditional halide systems.
The fixture features a stainless steel housing with IP66/67 sealing protection, making it suitable for exposed deck areas, cargo holds, and seaport installations where salt spray and washdown conditions are present.
Six integrated LED light sources provide uniform illumination across the target area. The unit accepts input voltage from 120V to 277V, enabling installation in both North American and international electrical systems.
APPLICATIONS
Primary use cases.
Marine Deck Lighting
Primary deck illumination on commercial and recreational vessels. Replaces Metal Halide fixtures with lower power draw and extended service life.
Cargo Hold Lighting
Interior hold and compartment illumination on ships and barges. IP66/67 rating withstands moisture and salt-laden air.
Industrial Seaport Applications
Dock, pier, and terminal lighting. Stainless steel construction resists corrosion in high-salinity environments.
Security Lighting
Perimeter and surveillance lighting for marine facilities and industrial waterfront installations.
TECHNICAL DATA
Complete specifications and tolerances for the Marine Deck LED Flood Light – ST80XL.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 5101006600-005 |
| Power Configuration | 6 × 50W LED sources |
| Total Wattage | 300W |
| Input Voltage | 120V–277V AC |
| Luminous Flux | 36,000 lm |
| Water Resistance Rating | IP66/67 |
| Housing Material | Stainless steel |
| Weight | 14 kg |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66/67
Dust-tight and water-resistant to temporary immersion. Suitable for high-pressure washdown and marine spray environments.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available for the ST80XL?
How does the ST80XL compare to Metal Halide flood lights?
Is the ST80XL suitable for saltwater environments?
What is the IP rating and what does it mean?
Can the ST80XL be used in cargo holds?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
