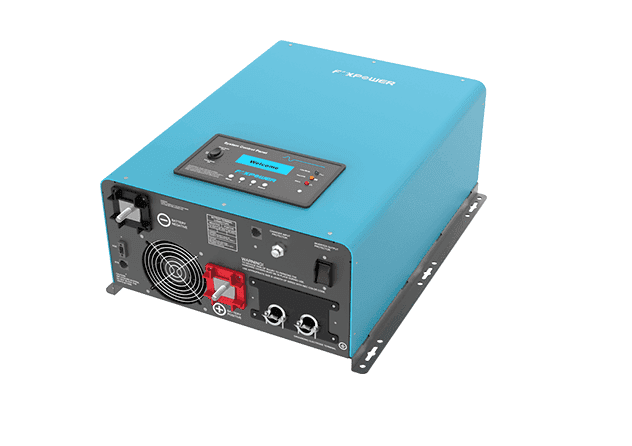

120V AC Power Inverter – FoxPower
DC to AC inverter converting 12–24V DC input to 120V AC output. Rated 600–2,000W with pure sine wave output suitable for sensitive electronics including televisions, audio equipment, and office devices. High-frequency topology with isolated input/output design and DSP control.
The Sunsine 120Vac inverter converts DC power to AC with pure sine wave output, maintaining voltage stability under variable loads. Input voltage range spans 12–24V DC with output power scaling from 600W to 2,000W depending on configuration. The isolated input/output design reduces conducted noise and protects connected equipment.
Key operational features include LED status indication, DSP-based control logic, and selectable power-saving mode. Optional remote control and N+X redundancy configurations are available for multi-unit installations. Compact form factor (270 × 160 × 70 mm) with weight range 2.5–8.0 kg accommodates mobile and fixed installations.
APPLICATIONS
Primary use cases.
Mobile Power Systems
Vehicle and vessel DC power conversion for AC-dependent equipment operation.
Remote Site Operations
Battery-backed power supply for telecommunications, monitoring, and office equipment at off-grid locations.
Backup Power Applications
Secondary AC source for critical loads during primary power interruption.
TECHNICAL DATA
Complete specifications and tolerances for the 120V AC Power Inverter – FoxPower.
| PARAMETER | SPECIFICATION |
|---|---|
| Product Number | SS0612 |
| Input Voltage | 12–24V DC |
| Output Voltage | 120V AC |
| Power Rating | 600–2,000W |
| Output Waveform | Pure Sine Wave |
| Control Method | Digital Signal Processor (DSP) |
| Dimensions | 270 × 160 × 70 mm |
| Weight | 2.5–8.0 kg |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
European Conformity
Product meets applicable EU directives for electrical safety and electromagnetic compatibility.
EN60950
Safety of information technology equipment standard compliance.
UL-458
Standard for power conversion equipment and uninterruptible power supplies.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
