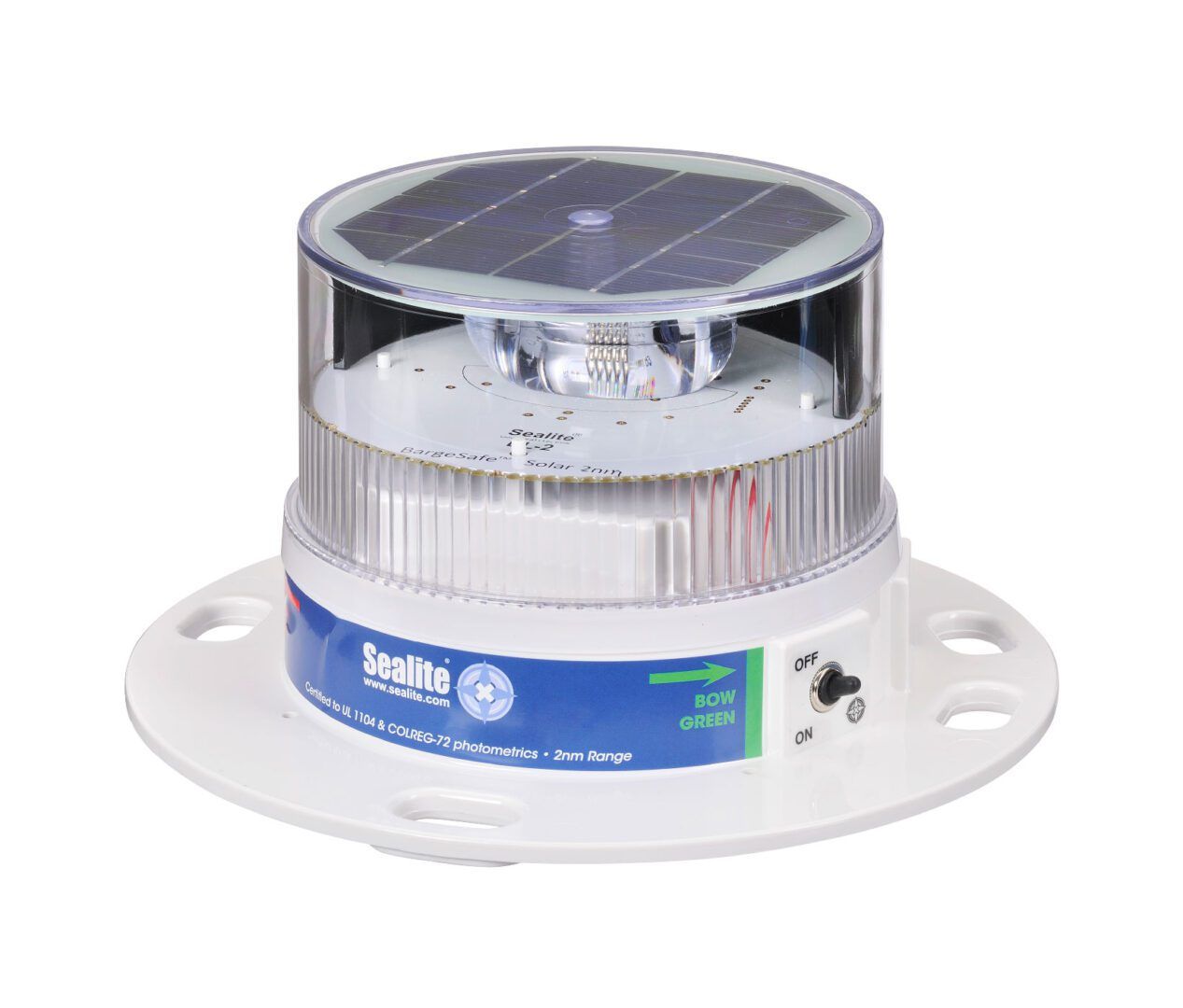

2NM Solar Barge Light – Sealite BargeSafe
Solar-powered barge light meeting UL 1104 and COLREG-72 standards. Polycarbonate construction with high-intensity LED technology delivers 2 nautical mile visibility with low power consumption. Features integrated solar charging, automatic dusk activation, and user-replaceable battery.
The BargeSafe is a 2NM solar barge light engineered for marine navigation applications. Constructed from polycarbonate with high-intensity LED optics, the unit operates independently with self-contained solar panels and rechargeable battery. Automatic dusk activation eliminates manual switching. The design prioritizes durability and field serviceability through user-replaceable battery cartridges.
Key operational features include on/off manual control, enhanced optical performance for reliable 2NM range visibility, and >100,000 hour LED life expectancy. Installation requires minimal setup. The unit operates at 3.6V DC from internal battery storage charged by integrated solar panels.
APPLICATIONS
Primary use cases.
Barge Operations
Stationary and towed barge navigation lighting for inland and coastal waterways
Marine Navigation Aids
Temporary or permanent navigation markers for harbors, channels, and restricted waters
Offshore Platforms
Auxiliary lighting for small marine structures and mooring points
TECHNICAL DATA
Complete specifications and tolerances for the 2NM Solar Barge Light – Sealite BargeSafe.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | SL-BLS-2-[xx]-[x] |
| Voltage | 3.6V DC |
| Material | Polycarbonate |
| Visible Range | 2 Nautical Miles |
| LED Life Expectancy | >100,000 hours |
| Power Source | Integrated solar panels with rechargeable battery |
| Activation | Automatic dusk sensor with manual on/off override |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
1104
Marine navigation light safety and performance standard
COLREG-72
Convention on the International Regulations for Preventing Collisions at Sea – navigation light requirements
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the visible range of the BargeSafe?
Is the battery user-replaceable?
Does the light require external power?
What standards does this product meet?
How long do the LED lights last?
Can the light be manually controlled?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
