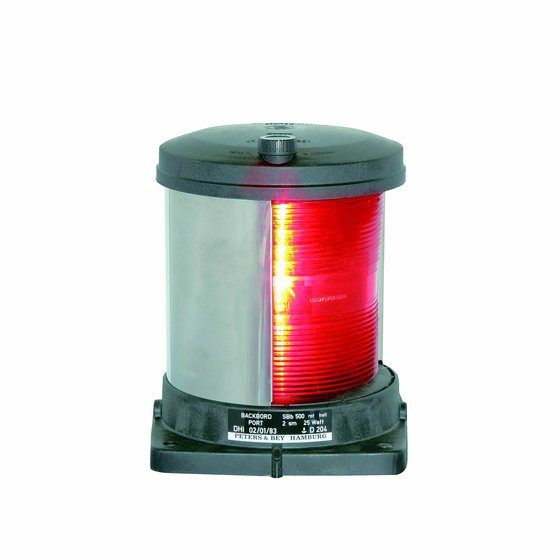

500 Navigation Light – Peters + Bey
Polyamid construction navigation light for vessels under 50 meters. Glass fiber reinforced polyamid housing manufactured in Germany. Available in 12V and 24V configurations with IP56 sealing rating.
The Peters + Bey 500 Navigation Light is engineered for vessels under 50 meters in length. The housing uses glass fiber reinforced polyamid construction, manufactured in Germany. The unit provides a 3 nautical mile visibility range and supports multiple voltage options: 12V, 24V, 115V, and 230V.
Material properties include shock resistance, non-corrosive composition, non-magnetic construction, and seawater resistance. IP56 sealing rating provides protection against water ingress and dust contamination.
APPLICATIONS
Primary use cases.
Vessels Under 50 Meters
Primary application for commercial and private vessels in the sub-50 meter class requiring certified navigation lighting
TECHNICAL DATA
Complete specifications and tolerances for the 500 Navigation Light – Peters + Bey.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 500 Navigation Light |
| Vessel Size Rating | < 50m / 124ft |
| Visibility Range | 3 nautical miles |
| Voltage Options | 12V, 24V, 115V, 230V |
| Lantern Configuration | Single |
| IP Rating | IP56 |
| Housing Material | Glass fiber reinforced polyamid |
| Corrosion Resistance | Non-corrosive, seawater resistant |
| Magnetic Properties | Non-magnetic |
| Impact Resistance | Shock resistant |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
German Federal Maritime and Hydrographic Agency
Approval for use on German-flagged vessels and maritime operations
Germanischer Lloyd
Classification society approval for marine equipment
Marine Equipment Directive
EU compliance for marine navigation equipment
1104
Underwriters Laboratories standard for marine navigation lights
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What vessel sizes is the 500 Navigation Light rated for?
What voltage options are available?
What is the visibility range of this navigation light?
What is the IP rating and what does it protect against?
Where is the 500 manufactured?
What regulatory approvals does this product hold?
