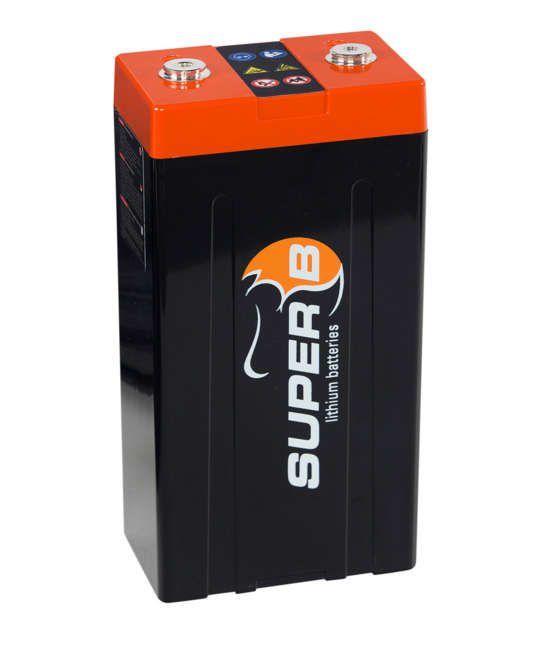

Andrena 12V 20Ah – LiFePO4 Battery
The Andrena 12V 20Ah is a lithium iron phosphate battery engineered for motorsports applications. Rated for 12V systems operating in extreme environments, it delivers 20Ah nominal capacity with IP69 water ingress protection and operational range from -30°C to 55°C.
The Andrena 12V 20Ah utilizes cylindrical LiFePO4 cells in a compact rally-specification enclosure. Self-discharge rate remains below 3% per month. The battery supports over 1,000 charge-discharge cycles and accommodates fast charging protocols. Nominal voltage is 12.8V with dimensions of 120 × 82 × 238 mm and weight of 3.2 kg.
Key performance metrics: IP69 water rating, -30°C to 55°C operational temperature range, 20Ah capacity. Certified to CE, UN 38.3, and UL 1642 (cells) standards.
APPLICATIONS
Primary use cases.
Motorsports
Rally vehicles and extreme-environment motorsport applications requiring compact, high-cycle-life power sources.
12V System Integration
Direct replacement for lead-acid batteries in 12V electrical systems with enhanced cycle life and temperature tolerance.
TECHNICAL DATA
Complete specifications and tolerances for the Andrena 12V 20Ah – LiFePO4 Battery.
| PARAMETER | SPECIFICATION |
|---|---|
| Product | Andrena 12V 20Ah |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 20Ah |
| Dimensions | 120 × 82 × 238 mm |
| Weight | 3.2 kg |
| Water Rating | IP69 |
| Operating Temperature | -30°C to 55°C |
| Self-Discharge Rate | <3% per month |
| Charge-Discharge Cycles | >1,000 |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
European Conformity
Product meets EU safety and performance requirements.
UN 38.3
Lithium battery transport classification and safety standard.
UL 1642
Lithium battery cell safety certification.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the cycle life of the Andrena 12V 20Ah?
What is the self-discharge rate?
What temperature range is the battery rated for?
What certifications does this battery hold?
What is the water ingress protection rating?
Can this battery replace a lead-acid battery?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
