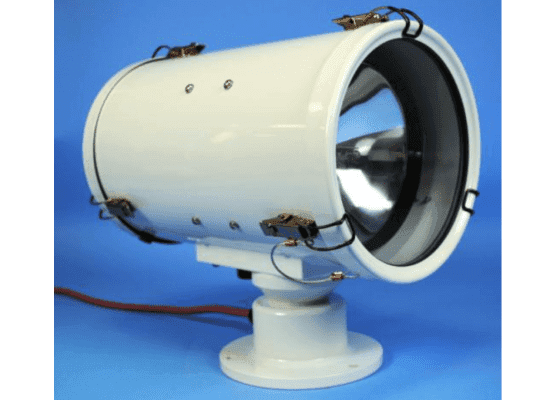

Compact Xenon Searchlights – Francis LX230RC
The Francis LX230RC is a 100W xenon searchlight engineered for marine patrol, coast guard, and general applications requiring compact high-powered illumination. Delivers 1760 m effective range with instant full brilliance and re-strike capability. Marine-grade stainless steel construction rated for harsh operational environments.
The Francis LX230RC searchlight delivers cost-effective, low-profile lighting for demanding marine and coastal applications. Engineered to perform in harsh conditions, this unit combines compact form factor with high-output xenon illumination.
Key operational advantages include immediate full lamp brilliance upon activation and instant re-strike capability with no cool-down period. The parabolic super-pure aluminium reflector and pre-focused lamp deliver consistent beam projection across the 1760 m effective range.
Remote pan rotation spans 360° with independent control. Toughened front glass and marine-grade stainless steel construction ensure durability in salt-spray and high-vibration environments. Optional infrared filter available for specialized applications.
APPLICATIONS
Primary use cases.
Patrol Craft
Compact form factor and 360° remote pan rotation support rapid target acquisition and surveillance operations on fast-attack and patrol vessels.
Coast Guard Operations
1760 m effective range and instant re-strike capability enable rapid response and extended search operations in coastal and offshore environments.
General Marine Applications
Marine-grade stainless steel construction and sealed optical assembly support extended service life in salt-spray and high-humidity conditions.
TECHNICAL DATA
Complete specifications and tolerances for the Compact Xenon Searchlights – Francis LX230RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A6098 / A6091 |
| Power Input | 12 V DC / 24 V DC |
| Wattage | 100 W |
| Lamp Life | 3,000 hours |
| Effective Range | 1760 m |
| Pan Rotation | 360° remote controlled |
| Material | Marine-grade stainless steel |
| Optical Assembly | Toughened front glass, parabolic super-pure aluminium reflector, pre-focused lamp |
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the effective illumination range?
Does the lamp require cool-down time between activations?
What voltage options are available?
Is an infrared filter available?
What is the lamp service life?
Is the searchlight suitable for salt-spray environments?
