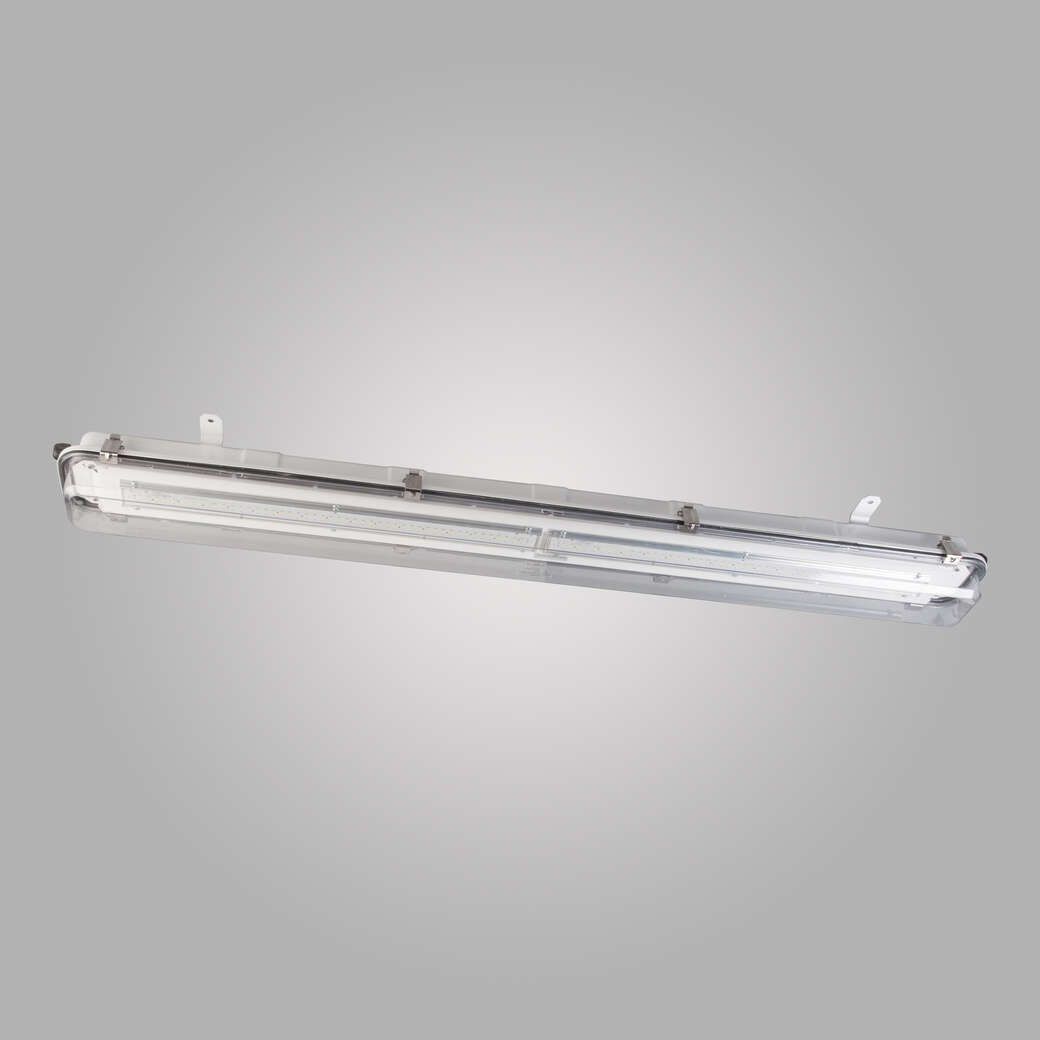

EX40 L/S Explosion Proof – Watertight LED Luminaire
LED luminaire rated for Zone 1/2 hazardous areas with gas, vapour, and dust environments. Galvanized steel housing with polycarbonate cover provides IP67 watertight sealing and impact resistance. Available in small and large sizes.
The EX40 is a watertight luminaire designed for hazardous areas requiring explosion-proof lighting. The sealed construction permits safe operation in environments where gas, vapours, or dust present ignition risks.
Housing is galvanized steel with a clear polycarbonate cover that resists impact and prevents water ingress to the sealed light source. Two M20 cable entries accommodate standard conduit connections. Light source is accessible for maintenance without full disassembly.
APPLICATIONS
Primary use cases.
Petrochemical Facilities
Lighting in gas processing areas, refineries, and chemical plants where explosive atmospheres are classified.
Mining Operations
Underground and surface installations in coal mines and mineral extraction sites with dust hazards.
Marine & Offshore
Deck and enclosed space lighting on vessels and platforms operating in hazardous zones.
TECHNICAL DATA
Complete specifications and tolerances for the EX40 L/S Explosion Proof – Watertight LED Luminaire.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 510800500-00X |
| Voltage Input | 120–240 V AC |
| Power Consumption | 22 W |
| Frequency | 50–60 Hz |
| Light Source | LED |
| Housing Material | Galvanized steel |
| Cover Material | Polycarbonate, clear |
| IP Rating | IP67 |
| Cable Entry | 2× M20 |
| Available Sizes | Small (S) and Large (L) |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Zone 1/2 Hazardous Area Rating
Certified for use in Zone 1 and Zone 2 areas where explosive gas or vapour atmospheres may occur.
IP67 Ingress Protection
Complete dust protection and temporary immersion capability up to 1 metre for 30 minutes.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What hazardous area classifications does the EX40 support?
Is the light source replaceable?
What is the ingress protection rating?
What cable entry options are provided?
