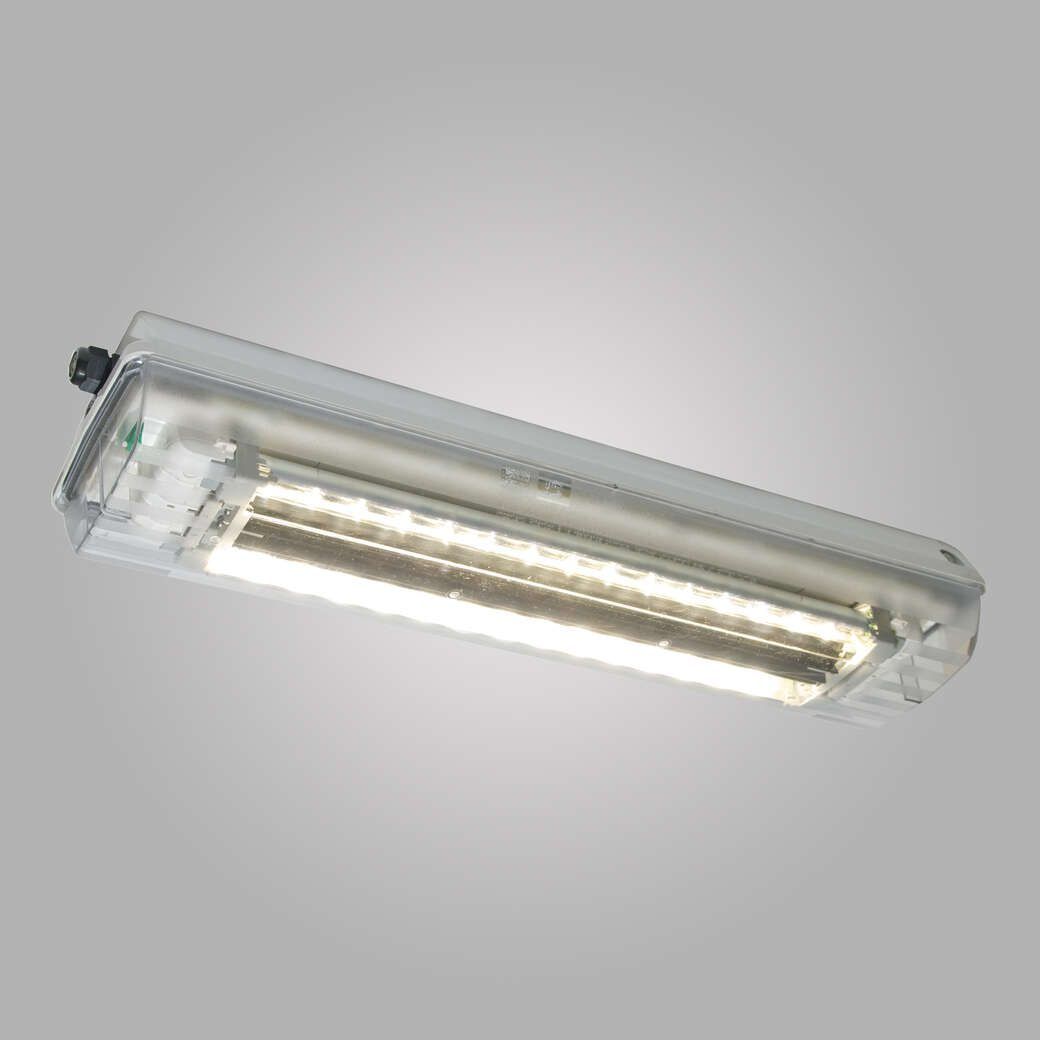

EX92 Explosion Proof – Watertight LED Luminaire
The EX92 is a watertight LED luminaire for hazardous areas classified as Zone 1, 2, 21, and 22. It features reinforced polyester housing with a polycarbonate cover, designed to operate safely in environments where gas, vapours, or dust present explosion risks. IP66/67 rated with impact and UV resistance.
The EX92 is a watertight luminaire designed for hazardous areas requiring explosion-proof lighting. The sealed construction prevents water ingress and contains the light source safely in environments where gas, vapours, or dust could ignite.
Housing is reinforced polyester with a clear polycarbonate cover that resists impacts and UV exposure. Four M20 cable entries accommodate standard conduit connections. The transparent cover allows direct access to the LED light source for maintenance.
APPLICATIONS
Primary use cases.
Petrochemical Facilities
Lighting in gas and vapour hazard zones requiring certified explosion-proof equipment.
Mining Operations
Dust-classified areas where ignition sources must be eliminated.
Offshore Platforms
Wet, corrosive environments with gas hazard classifications.
Chemical Processing
Sealed luminaires for Zone 1 and 2 classified work areas.
TECHNICAL DATA
Complete specifications and tolerances for the EX92 Explosion Proof – Watertight LED Luminaire.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 5108003510-001 |
| Voltage Input | 110-240 V AC |
| Frequency | 50-60 Hz |
| Power Output | 13 W / 26 W |
| Light Source | LED |
| Housing Material | Stainless Steel |
| Cover Material | Polycarbonate (clear) |
| IP Rating | IP66/67 |
| Cable Entry | 4x M20 |
| Impact Resistance | Impact proof |
| UV Resistance | UV resistant |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Explosion Proof Certification
Certified for Zone 1, 2, 21, and 22 hazardous area operation where gas, vapours, or dust atmospheres may occur.
IP66/67
Complete dust protection and temporary immersion resistance. Suitable for wet environments and washdown applications.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What hazardous area zones is the EX92 certified for?
What is the IP rating and what does it mean?
What materials are used in construction?
How are electrical connections made?
Is the light source accessible for replacement?
What power options are available?
