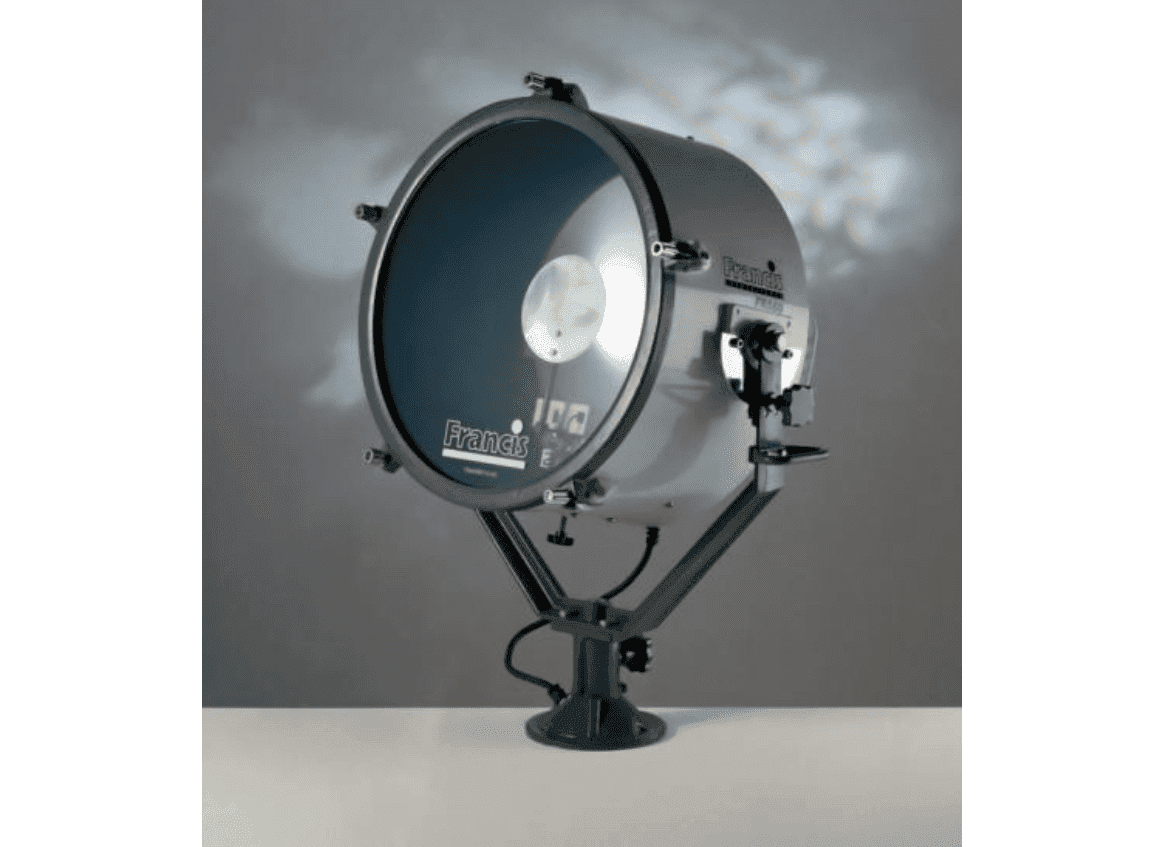

Francis Searchlight FR480
Tungsten halogen manually controlled searchlight designed for demanding marine and land-based operations. The FR480 incorporates IP66 sealing protection, parabolic glass reflector, and marine-grade construction for patrol craft, custom vessels, and general marine applications.
The Francis FR480 searchlight is engineered for operation in demanding environments on land and sea. The unit features a parabolic glass reflector with external lamp focus adjustment and toughened front glass. Marine-grade materials and fixings ensure durability in corrosive conditions. A light shield minimizes stray light and glare.
Manual control provides operator flexibility. Pan rotation reaches 450°. The searchlight operates across a temperature range down to -50°C and delivers effective illumination to 1,500 m.
APPLICATIONS
Primary use cases.
Patrol Craft
Manual searchlight for tactical illumination and surveillance on patrol vessels.
Custom Vessels
Adaptable mounting and control for specialized marine platforms.
General Marine Applications
Docking, navigation, and general-purpose illumination for commercial and military vessels.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlight FR480.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A2704 / A2705 |
| Voltage | 110 V / 240 V |
| Wattage | 2,000 W / 1,000 W |
| Lamp Life | 750 hrs |
| Illumination Range | 1,500 m |
| Pan Rotation | 450° |
| Operating Temperature | -50°C minimum |
| Sealing Protection | IP66 (searchlight and gearbox) |
| Material | Marine grade |
| Reflector | Parabolic glass |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66 Sealing Protection
Searchlight and gearbox rated IP66 for dust and water jet resistance in marine environments.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available for the FR480?
What is the effective illumination range?
What is the lamp service life?
Is the FR480 suitable for cold-weather operation?
What sealing protection does the FR480 provide?
What is the pan rotation capability?
