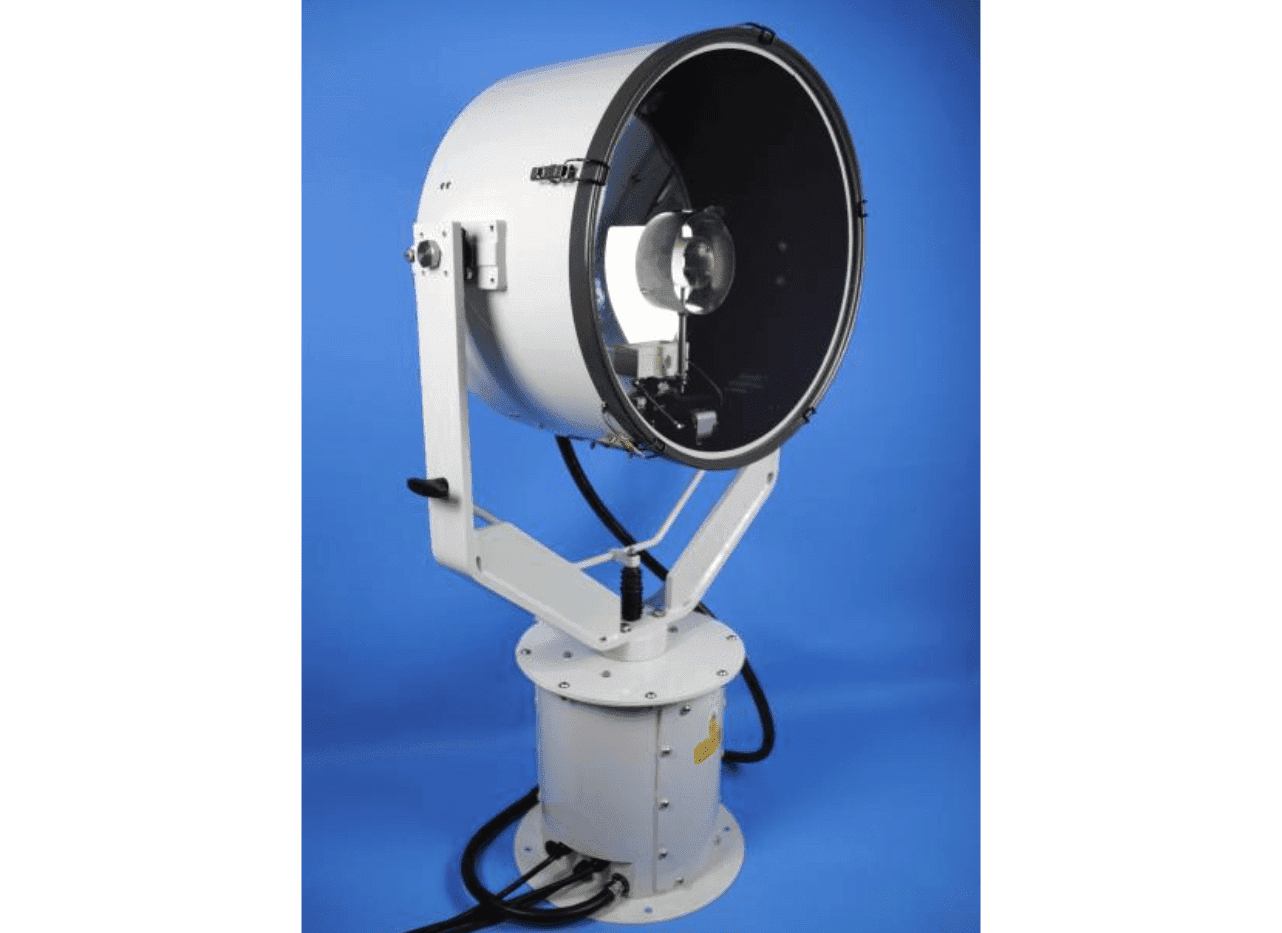

Francis Searchlight FR560RC
Tungsten halogen remote controlled searchlight with variable speed control, joystick panel, RS485 interface, and auto home positioning. IP66 sealed construction rated for marine environments with 2,000 m operational range.
The FR560RC Range Explorer is a large-format remote control searchlight for navigation and patrol applications. The unit features full variable speed control, membrane and LED joystick control panel, RS485 interface capability, and automatic home position setting.
Construction uses marine grade materials and fixings throughout. The parabolic polished glass reflector with toughened front glass and external focus adjustment delivers focused illumination to 2,000 m. Spill rings minimize stray light and glare. Pan rotation spans 385°.
APPLICATIONS
Primary use cases.
Navigation
Long-range illumination for vessel navigation and obstacle detection
Patrol
Remote controlled surveillance and perimeter monitoring applications
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlight FR560RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7032 / A7033 |
| Voltage | 115 V / 230 V |
| Wattage | 1,000 W / 2,000 W |
| Lamp Life | 750 hrs |
| Operational Range | 2,000 m |
| Operating Temperature | -50°C |
| Pan Rotation | 385° |
| Material | Marine Grade |
| Sealing Protection | IP66 (searchlight and gearbox) |
| Control Interface | RS485 |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Searchlight and gearbox sealed to IP66 standard for dust and water jet protection
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the maximum illumination range?
What control options are available?
Is the searchlight suitable for marine environments?
What lamp type is used?
What voltage options are available?
