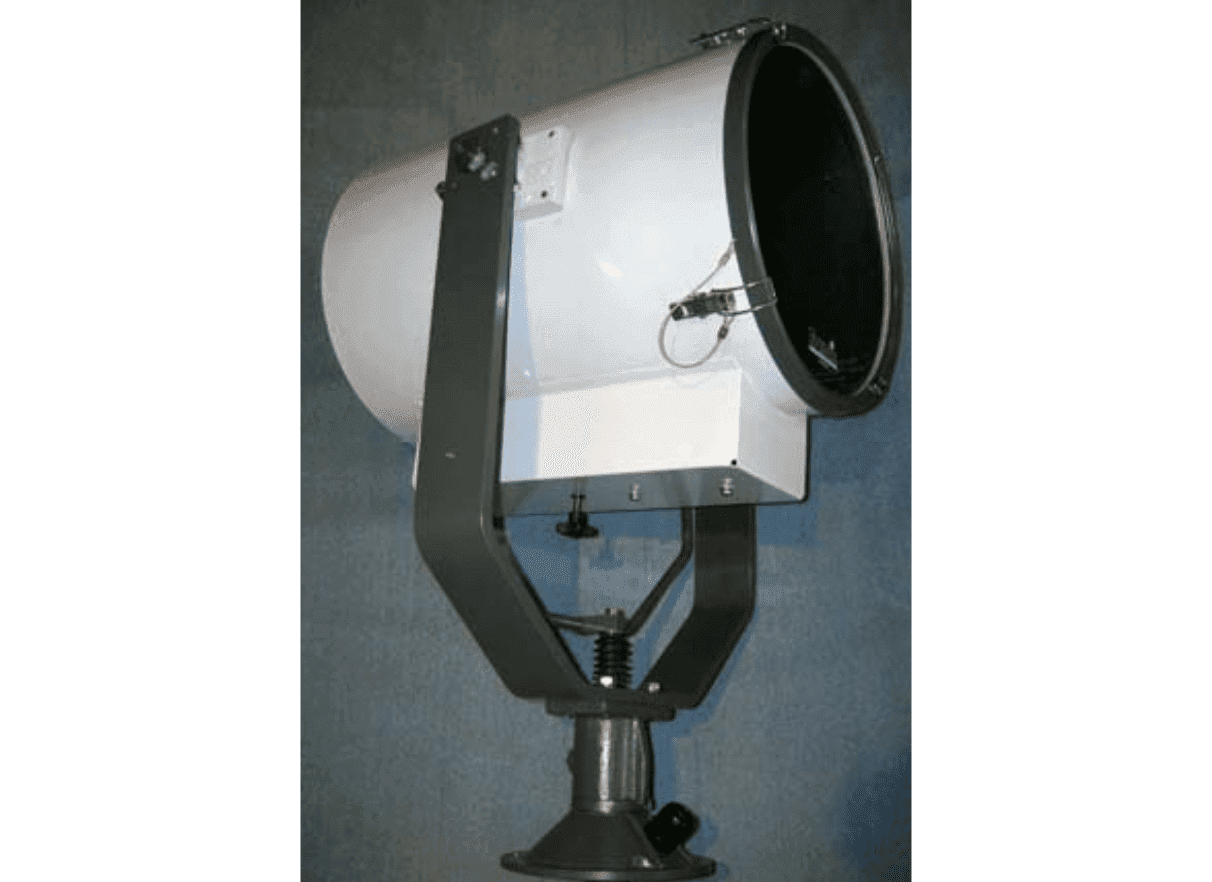

Francis Searchlights FH380
Marine-grade searchlight with 1,200W metal halide lamp for security, patrol craft, and custom vessel applications. Features instant re-strike capability, 360° pan rotation, and operation down to -50°C. Effective range of 5,805 meters with 1,000-hour lamp life.
The Francis FH380 is a variable-speed remote-controlled searchlight engineered for demanding maritime and land-based security operations. Constructed from marine-grade materials with corrosion-resistant brass housing and stainless steel fixings, this unit delivers reliable performance in harsh environments including patrol craft, custom vessels, and permanent security installations.
Key operational features include instant re-strike with no cooling-down period, toughened front glass, and parabolic glass reflector for optimized beam projection. Integrated heaters in the gearbox and optional barrel heater maintain functionality at temperatures as low as -50°C. Full 360° pan rotation capability enables comprehensive coverage.
APPLICATIONS
Primary use cases.
Patrol Craft
Mounted searchlight for vessel-based security and surveillance operations requiring extended range illumination and rapid directional control.
Custom Vessels
Integrated lighting solution for specialized maritime platforms requiring marine-grade construction and reliable performance in salt-water environments.
Security Installations
Fixed or mobile perimeter security applications requiring high-intensity illumination with extended effective range and low-temperature operational capability.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights FH380.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7872 / A873 |
| Power Input | 240V AC |
| Wattage | 1,200W |
| Lamp Type | Metal Halide |
| Lamp Life | 1,000 hours |
| Effective Range | 5,805 meters |
| Operating Temperature | -50°C to +55°C |
| Pan Rotation | 360° |
| Housing Material | Brass with marine-grade fixings |
| Front Glass | Toughened |
| Reflector | Parabolic glass |
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the re-strike capability?
What is the minimum operating temperature?
What is the effective illumination range?
Is this unit suitable for saltwater environments?
What control options are available?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
