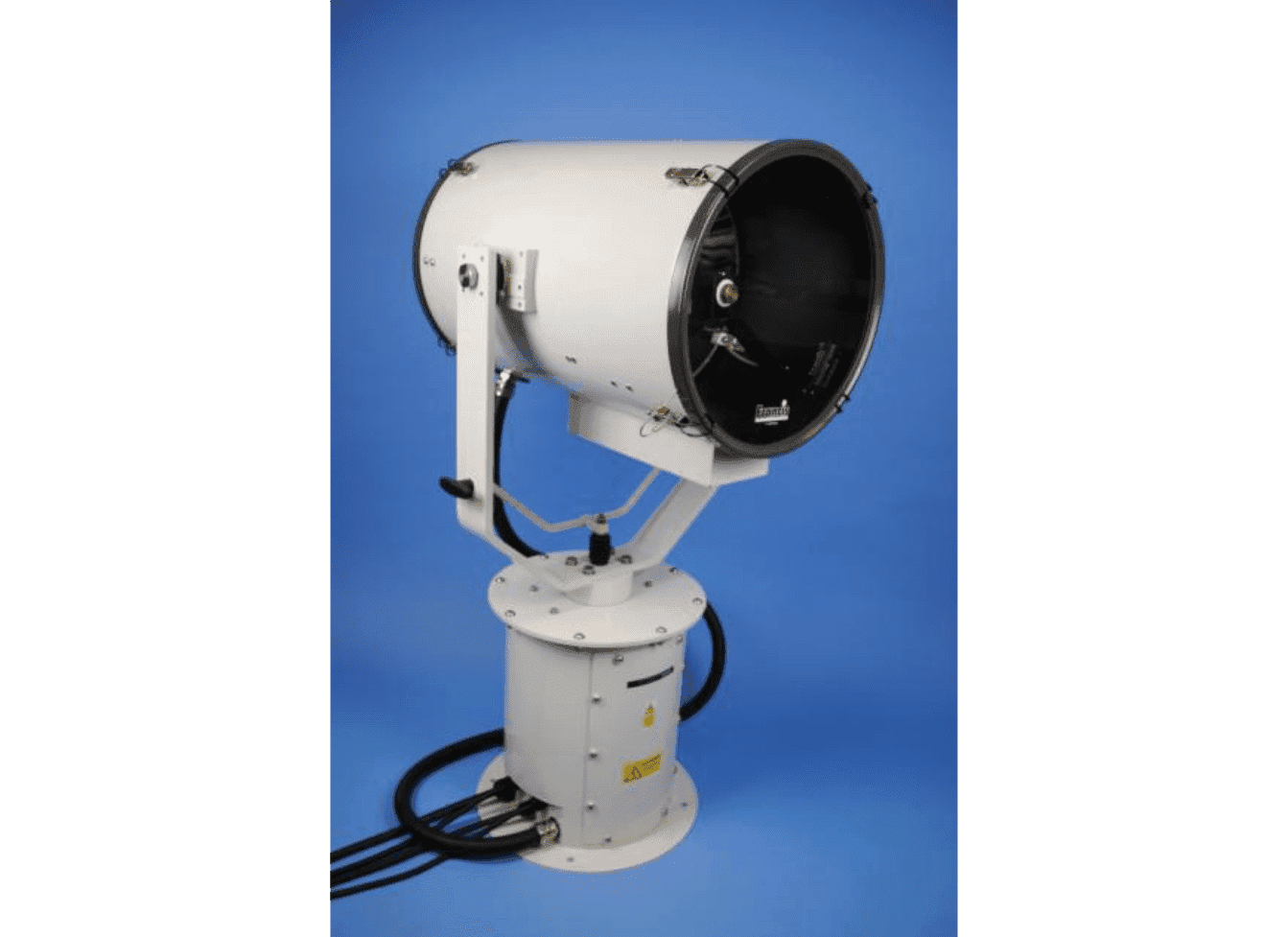

Francis Searchlights FH380RC
Remote-controlled searchlight with 1,200W metal halide lamp for marine and security applications. Features instant re-strike capability, 360° pan rotation, and operates in temperatures down to -50°C. Communicates via Francis bus (FBUS) RS485 protocol for integration with control panels.
The Francis FH380RC is a variable-speed remote-controlled searchlight engineered for demanding operational environments on land and sea. Designed for patrol craft, custom vessels, and security installations, this unit incorporates marine-grade materials and fixings throughout.
Communication is handled via Francis bus (FBUS), a custom protocol based on RS485 two-wire bi-directional communication. This provides direct integration between searchlights and control panels without requiring cooling-down periods between operations.
Key features include instant re-strike capability, toughened front glass, parabolic glass reflector, 360° pan rotation, and integrated heaters in both gearbox and optional barrel heater for cold-weather operation.
APPLICATIONS
Primary use cases.
Patrol Craft
Remote-controlled operation suitable for vessel-mounted security and navigation lighting applications.
Custom Vessels
Adaptable to custom marine installations with RS485 control integration.
Security Installations
Fixed or mobile security applications requiring long-range illumination and remote pan control.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights FH380RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7872 / A873 |
| Lamp Type | Metal Halide |
| Wattage | 1,200W |
| Voltage | 230V |
| Lamp Life | 1,000 hours |
| Effective Range | 5,805 meters |
| Operating Temperature | -50°C to +55°C |
| Pan Rotation | 360° |
| Primary Material | Brass |
| Front Glass | Toughened |
| Reflector | Parabolic glass |
| Communication Protocol | Francis bus (FBUS) RS485 |
| Re-strike Time | Instant (no cooling required) |
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What communication protocol does the FH380RC use?
Can this searchlight operate in cold environments?
What is the effective illumination range?
How long does the metal halide lamp last?
Does the lamp require cooling time between operations?
What materials are used in construction?
