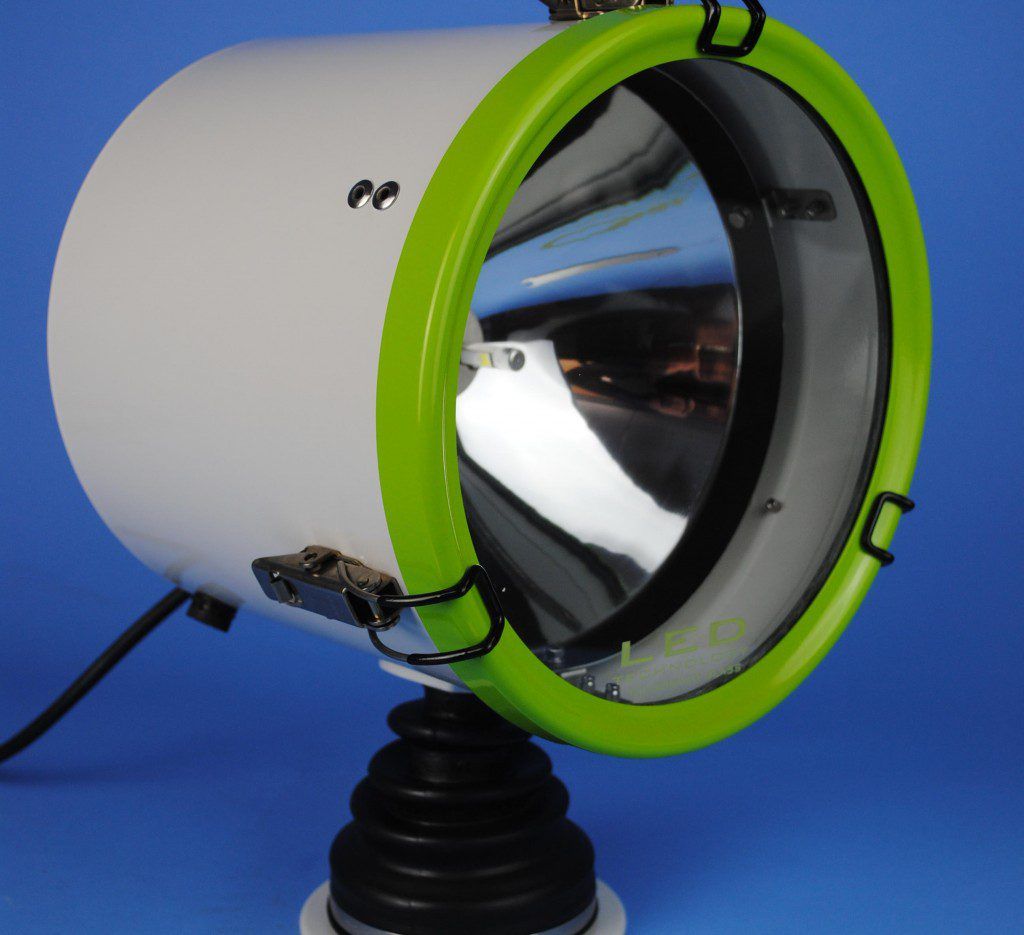

Francis Searchlights L230
The Francis L230 is a 40W LED searchlight for small vessels and RIBs, delivering 800m range with IP66 sealing protection. Operating from 12V or 24V DC, it provides 50,000-hour lamp life and 6,000K color temperature equivalent to xenon sources.
The Francis L230 LED searchlight replaces traditional lamp sources with automotive-grade LED technology. The unit delivers high power output at 40W with reduced power consumption, suitable for manual control applications on small vessels and RIBs.
Construction features a parabolic split glass reflector with toughened Optiwhite front glass for optical clarity and durability. IP66 sealing protection ensures operation in marine environments across -50°C to operational limits.
APPLICATIONS
Primary use cases.
RIBs and Small Vessels
Manual searchlight control for deck illumination, navigation, and search operations on rigid inflatable boats and small commercial vessels.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights L230.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A6158 / A6159 |
| Voltage | 12V DC / 24V DC |
| Power Consumption | 40W |
| Lamp Life | 50,000 hours |
| Illumination Range | 800m |
| Color Temperature | 6,000K |
| Operating Temperature | -50°C minimum |
| Sealing Protection | IP66 |
| Reflector | Parabolic split glass |
| Front Glass | Toughened Optiwhite |
| Material Grade | Marine Grade |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Complete dust protection and high-pressure water jet resistance from any direction.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available?
What is the operational temperature range?
How long is the LED lamp life?
Is the searchlight suitable for harsh marine environments?
What is the illumination range?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
