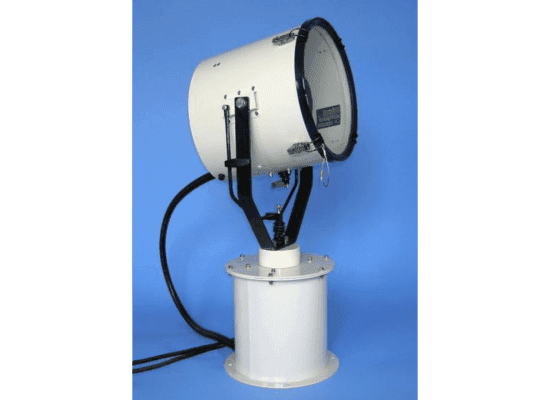

Francis Searchlights L380RC
Tungsten halogen remote controlled searchlight for marine applications. The L380RC is a compact, cost-effective unit with external focus adjustment, IP66 weatherproofing, and variable speed pan rotation across 385°. Suitable for patrol craft, custom vessels, and general marine use.
The Francis Lite range incorporates design features for demanding operating environments on land and sea. The L380RC delivers remote control functionality with variable speed pan rotation, joystick control panel, membrane and LED technology, RS485 interface, and auto home position setting.
Construction uses marine grade stainless steel with a parabolic formed aluminium reflector and toughened front glass. The modular design permits field modifications. Gearbox and searchlight both meet IP66 weatherproofing. Heater fitted in gearbox; optional heater available for barrel. Spill rings minimize stray light and glare.
APPLICATIONS
Primary use cases.
Patrol Craft
Compact remote controlled searchlight for small to medium patrol vessels requiring variable speed pan and external focus adjustment
Custom Vessels
Modular design accommodates integration into custom marine platforms with RS485 connectivity for system integration
General Marine Applications
Cost-effective searchlight solution for marine operations requiring 1,300 m illumination range and -50°C operational capability
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights L380RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7010 |
| Voltage Input | 24 V / 115 V / 230 V |
| Power Rating | 150 W – 1,000 W |
| Lamp Life | 1,000 hrs |
| Illumination Range | 1,300 m |
| Pan Rotation | 385° remote controlled |
| Operating Temperature | -50°C |
| Material | Marine grade stainless steel |
| Reflector | Parabolic formed aluminium |
| Front Element | Toughened glass |
| Weatherproofing | IP66 gearbox and searchlight |
| Interface | RS485 |
| Focus Adjustment | External; remote focus available as option |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Gearbox and searchlight assembly rated IP66 for dust and water ingress protection
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available for the L380RC?
What is the maximum illumination range?
Can the L380RC operate in cold climates?
Is remote focus control available?
What connectivity options does the L380RC support?
What is the pan rotation capability?
