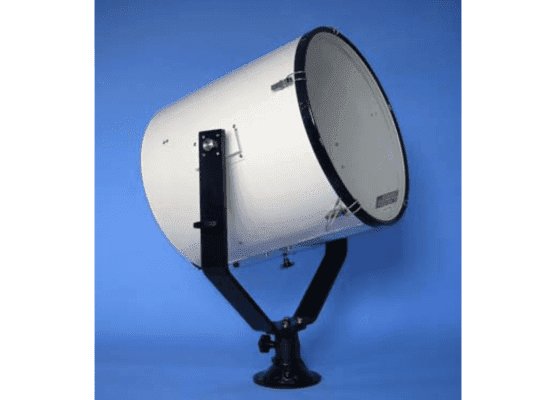

Francis Searchlights L560
IP66-rated tungsten halogen searchlight designed for marine and patrol vessel applications. Features external focus adjustment, parabolic aluminium reflector, and modular construction. Operates across 115V/230V supply with 2,000W output and 2,030m effective range.
The Francis Lite L560 is a cost-effective searchlight engineered for demanding marine and land-based operating environments. The unit incorporates a parabolic super-pure aluminium reflector with external focus adjustment and modular design to accommodate field modifications.
Suitable for patrol craft, custom vessels, and general marine applications. The weatherproof enclosure, toughened Optiwhite front glass, and integrated light shield minimize stray light and glare. Optional heater and remote focus capabilities are available.
APPLICATIONS
Primary use cases.
Patrol Craft
Compact searchlight for small vessel navigation and surveillance operations.
Custom Vessels
Modular design accommodates integration into specialized marine platforms.
General Marine Applications
Suitable for deck-mounted search and illumination duties on commercial and military vessels.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Searchlights L560.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7090 |
| Voltage Input | 115V / 230V AC |
| Power Consumption | 2,000W |
| Lamp Life | 400 hours |
| Effective Range | 2,030m |
| Pan Rotation | 450° |
| Operating Temperature | -50°C minimum |
| Enclosure Rating | IP66 |
| Primary Material | Marine-grade stainless steel |
| Reflector | Parabolic super-pure aluminium |
| Front Optic | Toughened Optiwhite glass |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Weatherproof enclosure rated for dust and high-pressure water jets.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available for the L560?
Can the L560 be fitted with a heater?
Is remote focus control available?
What is the lamp replacement interval?
Can the L560 be customized for specific vessel requirements?
