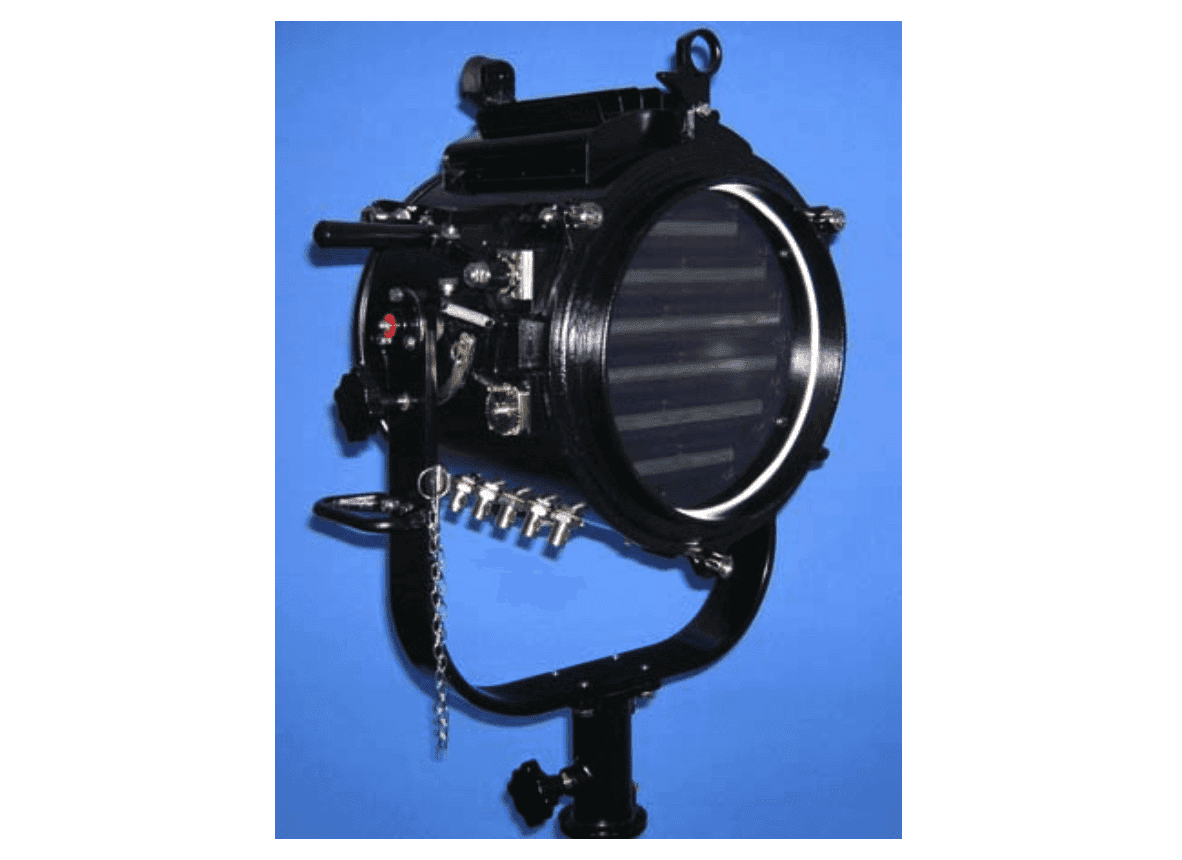

Francis Signalling Searchlight FSP250
The FSP250 is a 250mm pedestal or bridge wing-mounted signalling searchlight for medium and large vessels. Constructed from marine-grade anti-magnetic brass with IP56 weatherproofing, it delivers 10-mile daylight signalling range and supports morse code transmission at up to 12 words per minute. The shutter locks for searchlight operation.
The Francis FSP250 Signalling Searchlight is engineered for demanding maritime and land-based signalling applications. The 250mm (10-inch) projector mounts on pedestals or bridge wings and operates via ship-to-ship and ship-to-shore morse code signalling.
All-brass, anti-magnetic construction with IP56 weatherproofing ensures reliable operation in corrosive marine environments. The locking shutter mechanism enables dual-mode operation: signalling and searchlight functionality.
APPLICATIONS
Primary use cases.
Medium and Large Vessels
Ship-to-ship and ship-to-shore signalling on commercial and naval vessels.
Coastal and Offshore Operations
Signalling and search applications in high-corrosion marine environments.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Signalling Searchlight FSP250.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A4047 |
| Projector Diameter | 250mm (10 inches) |
| Voltage | 115V / 230V AC |
| Power Consumption | 1,000W |
| Lamp Type | Tungsten Halogen |
| Lamp Life | 200 hours |
| Signalling Range (Daylight) | 10 miles / 16 km |
| Maximum Range | 1,600m |
| Signalling Speed | Up to 12 words per minute |
| Beam Divergence | 6° |
| Material | Marine-grade anti-magnetic brass |
| IP Rating | IP56 |
| Applications | Signalling, search |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP56
Dust and water jet protection suitable for marine deck environments.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What mounting options are available for the FSP250?
Can the FSP250 operate as both a signalling light and searchlight?
What is the daylight signalling range?
What voltage options are available?
Is the FSP250 suitable for marine environments?
