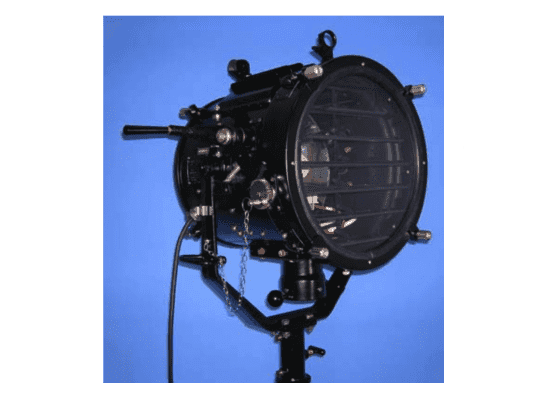

Francis Signalling Searchlight FSP380
The FSP380 is a 380mm (15") pedestal or bridge wing-mounted signalling searchlight for medium and large vessels. Constructed from brass with anti-magnetic properties and IP56 weatherproofing, it operates via tungsten halogen lamp for ship-to-ship and ship-to-shore morse code signalling with a minimum range of 12 nautical miles in daylight conditions.
The Francis FSP380 is a 380mm (15") pedestal or bridge wing-mounted signalling light designed for medium and large craft. It performs ship-to-ship and ship-to-shore signalling using morse code or equivalent signalling protocols.
Construction: Brass body with anti-magnetic properties and full weatherproofing to IP56. The shutter mechanism can be locked to enable searchlight operation. Optical system features a parabolic glass reflector with 4° beam divergence.
Performance: Signalling range of 12 nautical miles (19 km) in daylight. Shutter speed supports up to 12 words per minute morse transmission. Tungsten halogen lamp rated for 500 hours service life. Operating temperature range extends to -50°C.
APPLICATIONS
Primary use cases.
Large Vessel Signalling
Ship-to-ship and ship-to-shore morse code communication on medium and large commercial or naval vessels.
Search and Rescue Operations
Searchlight operation via locked shutter mechanism for night-time vessel location and signalling.
TECHNICAL DATA
Complete specifications and tolerances for the Francis Signalling Searchlight FSP380.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A4197 / A4195 / D8428 |
| Projector Diameter | 380mm (15") |
| Voltage | 440V |
| Power Consumption | 400W |
| Lamp Type | Tungsten Halogen |
| Lamp Life | 500 hours |
| IP Rating | IP56 |
| Signalling Range (Daylight) | 12 nautical miles / 19 km |
| Effective Range | 1,944 m |
| Beam Divergence | 4° |
| Signalling Speed | Up to 12 words per minute |
| Operating Temperature | -50°C to +55°C |
| Construction Materials | Aluminium, Brass, Anti-Magnetic |
| Reflector | Parabolic glass |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP56
Weatherproof enclosure rating. Dust-tight and protected against water jets from any direction.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the maximum signalling range of the FSP380?
Can the FSP380 be used as a searchlight?
What is the operating temperature range?
What mounting options are available?
What is the lamp service life?
Is the FSP380 suitable for magnetic-sensitive environments?
