Handheld Signalling Lantern – FSP127 SOLAS/MED
The Francis FSP127 (MKV) is a 127mm handheld signalling lantern fully approved to MED regulations and SOLAS requirements for vessels over 150 tons gross tonnage engaged in international travel. It provides ship-to-ship Morse code signalling with a daylight range of 12.8 km and operates independently of the vessel's main electrical power.
The FSP127 (MKV) meets SOLAS mandates requiring all international vessels over 150 tons to carry an efficient daylight signalling lamp independent of the ship's primary electrical source. The 127mm handheld projector delivers ship-to-ship signalling capability via Morse code on all vessel types.

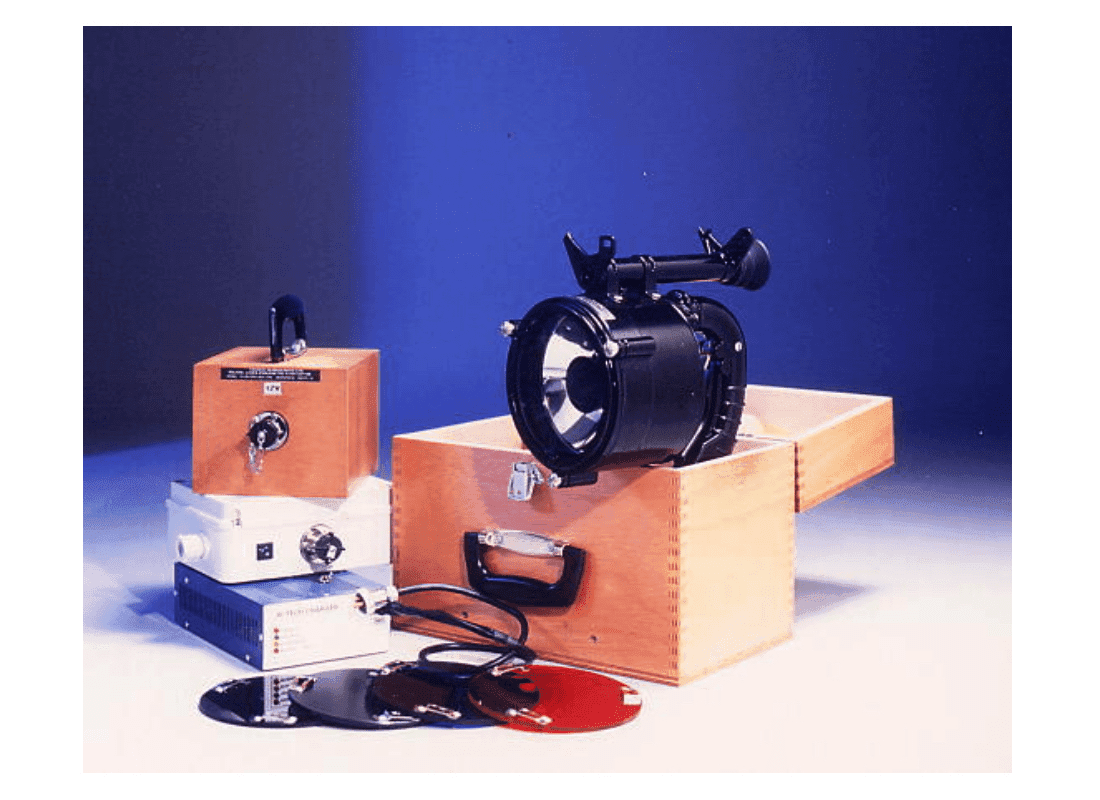

Construction uses marine-grade aluminium with IP56 weatherproof rating and full waterproof capability. The parabolic glass reflector, light reduction filters, and coloured filter options enable controlled light output. Standard tubular and V sights support precision aiming. The unit functions as both a signalling lamp and spotlight.
APPLICATIONS
Primary use cases.
International Commercial Vessels
Mandatory equipment for ships over 150 tons engaged in international travel. Provides independent daylight signalling capability for ship-to-ship communication.
Emergency Signalling
Supports emergency communication protocols via Morse code transmission at ranges up to 12.8 km in daylight conditions.
Spotlight Operations
Secondary use as a spotlight for deck operations and night-time visibility applications.
TECHNICAL DATA
Complete specifications and tolerances for the Handheld Signalling Lantern – FSP127 SOLAS/MED.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Numbers | A6133 / A6134 / A6146 / A6147 |
| Voltage | 12V DC / 24V DC |
| Lamp Life | 500 hours |
| Signalling Range (Daylight) | 12.8 km (8 miles) |
| Signalling Speed | Up to 12 words per minute |
| Beam Divergence | 5° |
| Projector Diameter | 127 mm (5 inches) |
| Operating Temperature | -50°C |
| IP Rating | IP56 (weatherproof) |
| Material | Marine-grade aluminium |
| Application | Signalling, spotlight |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
International Convention for the Safety of Life at Sea
Fully approved for mandatory daylight signalling lamp requirement on international vessels exceeding 150 tons gross tonnage. Operates independently of ship's main electrical power source.
Marine Equipment Directive
Certified to MED regulations for marine signalling equipment used on commercial vessels.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
Is the FSP127 SOLAS compliant?
What is the effective signalling range?
Does the lantern depend on the ship's main power?
What voltage options are available?
Can the lantern be used for purposes other than signalling?
What is the operating temperature range?
What is the lamp service life?
