Exterior Flood Lights

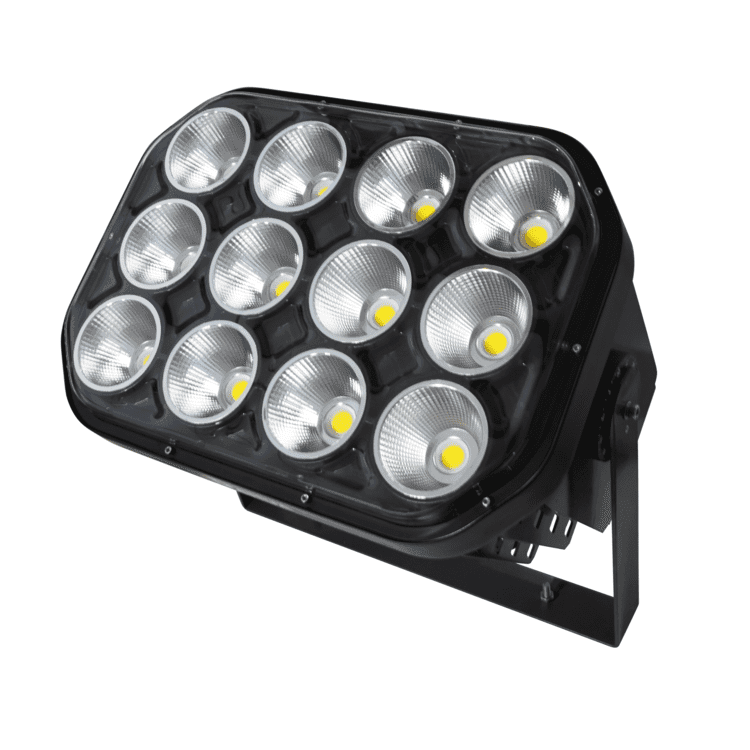

Marine LED Flood Light – Sonaray EPSILON

Name: Marine LED Flood Light – Sonaray EPSILON
Brand: Britmar Marine

The Sonaray EPSILON line delivers 253W to 517W LED flood lighting for outdoor marine and industrial applications. IP65/IK09 rated with die-cast aluminum housing and anti-corrosive finish, designed for ports, harbors, and area lighting in harsh environments.

MAIN IMAGE

The Sonaray EPSILON LED flood light series provides durable, efficient illumination for marine ports, harbors, and outdoor industrial applications. Each unit features IP65 sealing protection and IK09 impact resistance, with die-cast aluminum construction and anti-corrosive finish to withstand salt spray and corrosive environments.

Available models: FL-3250N, FL-3520N, and FL-41000N. Standard yoke mount with optional Slipfitter configuration. Narrow and wide beam distributions support flexible deployment for security, marine, and recreational applications.

APPLICATIONS

Primary use cases.

Marine Ports & Harbors

Dock and pier illumination with corrosion-resistant construction for saltwater exposure.

Security Lighting

Perimeter and area lighting for industrial facilities and marine terminals.

Recreational Marine

Outdoor lighting for marinas, boat launches, and waterfront facilities.

TECHNICAL DATA

Complete specifications and tolerances for the Marine LED Flood Light – Sonaray EPSILON.

PARAMETER	SPECIFICATION
Series	FL-3 / FL-4
Power Rating	253W / 520W / 1,000W
Voltage Input	100V – 480V
Lumen Output	28,000 lm – 112,000 lm
Lifetime	50,000+ hours
Housing Material	Die-cast aluminum
Sealing Protection	IP65 / IK09
Finish	Anti-corrosive coating
Mount	Yoke (standard) / Slipfitter (optional)
Beam Distribution	Narrow and wide options

REGULATORY COMPLIANCE

Validated by the world's leading maritime classification societies.

Product Certification

UL certified for safety and performance in marine and industrial environments.

IEC

IP65 / IK09 Rating

IP65 dust and water ingress protection; IK09 impact resistance for harsh outdoor conditions.

TECHNICAL FAQ

Common specifications and regulatory inquiries.

What voltage options are available?

The EPSILON series operates on 100V to 480V input, supporting single-phase and three-phase configurations for global deployment.

Is this fixture suitable for marine environments?

Yes. The die-cast aluminum housing with anti-corrosive finish and IP65/IK09 rating withstands salt spray, moisture, and impact in marine ports and harbors.

What mounting options are provided?

Standard yoke mount is included. Optional Slipfitter mount is available for pole-top installation.

What is the expected service life?

50,000+ hours of operation under rated conditions.

Are technical datasheets available?

Yes. The Sonaray EPSILON Data Sheet and product photography are available for download.

SUPPLEMENTARY FILES

Data Sheets, Manuals, and Technical Specifications.

SONARAY SPECIFICATIONS EPSILON FLOOD
