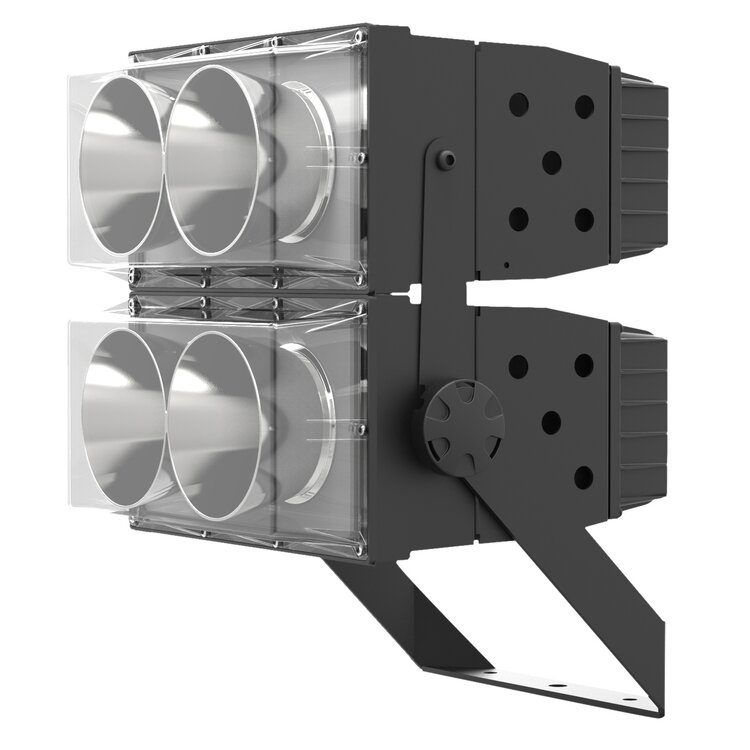

Marine LED Flood Light – Sonaray EXPLORER
The Sonaray EXPLORER line delivers modular LED flood lighting in 80W to 640W configurations for marine and outdoor industrial applications. IP65/IK09 rated with die-cast aluminum construction and anti-corrosive finish, these fixtures withstand harsh port and harbor environments.
The Sonaray EXPLORER line provides LED flood lighting for outdoor applications requiring durable, efficient illumination. Designed for marine ports, harbors, and harsh-environment deployments, the series offers modular stacking architecture with five power configurations: FL-5080 (80W), FL-5160 (160W), FL-5320 (320W), FL-5480 (480W), and FL-5640 (640W).
Standard yoke mount with optional slipfitter compatibility. Narrow and wide beam distributions available for area lighting and security applications. Modular design enables field stacking for increased output.
APPLICATIONS
Primary use cases.
Marine Ports & Harbors
Anti-corrosive finish and IP65/IK09 ratings enable reliable operation in saltwater and high-humidity environments.
Security Lighting
Modular power range (80W–640W) and selectable beam distributions support perimeter and area surveillance applications.
Recreational Marine
Durable construction and efficient LED technology reduce maintenance and operational costs for marine facilities.
TECHNICAL DATA
Complete specifications and tolerances for the Marine LED Flood Light – Sonaray EXPLORER.
| PARAMETER | SPECIFICATION |
|---|---|
| Series | FL-5 |
| Power Range | 80W – 640W |
| Voltage Input | 12V – 277V |
| Lumen Output | 7,500 lm – 79,000 lm |
| Rated Lifetime | 70,000+ hours |
| Housing Material | Die-cast aluminum |
| Sealing Protection | IP65, IK09 |
| Finish | Anti-corrosive coating |
| Mount Options | Yoke (standard), Slipfitter (optional) |
| Beam Distributions | Narrow and wide |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Electrical Testing Laboratories
Product certified to North American electrical safety standards.
Conformité Européenne
Meets European Union safety and performance directives.
IP65
Dust-tight and water-jet resistant. Suitable for outdoor marine environments.
IK09
Rated for 20J impact resistance. Withstands mechanical stress in industrial settings.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available?
Is this fixture suitable for saltwater environments?
Can multiple units be stacked together?
What mounting options are provided?
What is the expected service life?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
