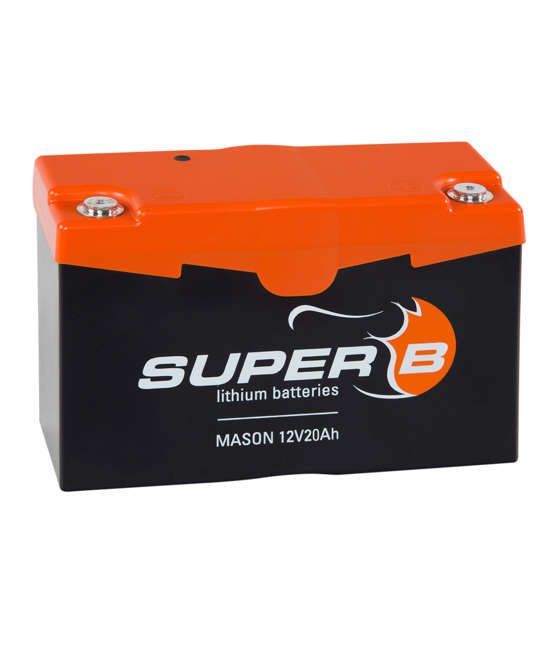

Mason 12V 20Ah – LiFePO4 Starter Battery
The Mason 12V 20Ah Lithium Iron Phosphate battery is engineered for engine starting applications on 12V electrical systems. It integrates a Battery Management System (BMS) for safety and reliability. The battery delivers 1,000+ charge-discharge cycles with minimal self-discharge and operates across -30°C to 55°C, offering a lightweight alternative to lead-acid starter batteries.
The Mason 12V 20Ah is a LiFePO4 starter battery designed for combustion engines requiring 12V board net power. The integrated BMS ensures optimal safety and cycle life. This battery reduces weight and footprint compared to conventional lead-acid alternatives while maintaining reliable cold-start performance.
Key performance metrics include self-discharge below 3% per month, over 1,000 charge-discharge cycles, and operational temperature range from -30°C to 55°C. The cylindrical LiFePO4 cell architecture provides compact dimensions (255 × 101 × 171 mm) with a total weight of 4.6 kg.
APPLICATIONS
Primary use cases.
Engine Starting Systems
Primary application for 12V combustion engine starting in marine, automotive, and industrial equipment.
Auxiliary Power Systems
Backup and auxiliary power for 12V electrical systems requiring reliable, lightweight energy storage.
TECHNICAL DATA
Complete specifications and tolerances for the Mason 12V 20Ah – LiFePO4 Starter Battery.
| PARAMETER | SPECIFICATION |
|---|---|
| Product Name | Mason 12V 20Ah |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 20Ah |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Dimensions | 255 × 101 × 171 mm |
| Weight | 4.6 kg |
| Operating Temperature | -30°C to +55°C |
| Self-Discharge Rate | <3% per month |
| Charge-Discharge Cycles | >1,000 cycles |
| IP Rating | IP66 |
| BMS | Integrated Battery Management System |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
European Conformity
Product meets European Union safety and performance standards.
UN 38.3
Complies with United Nations regulations for the transport of lithium batteries.
UL 1642 (Cells)
Lithium battery cells certified to UL 1642 safety standard.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the nominal voltage output?
How many charge cycles does this battery support?
What is the self-discharge rate?
What temperature range is supported?
What is the IP rating?
What certifications does this battery hold?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
