Rectangular Frame – WallMax Transits

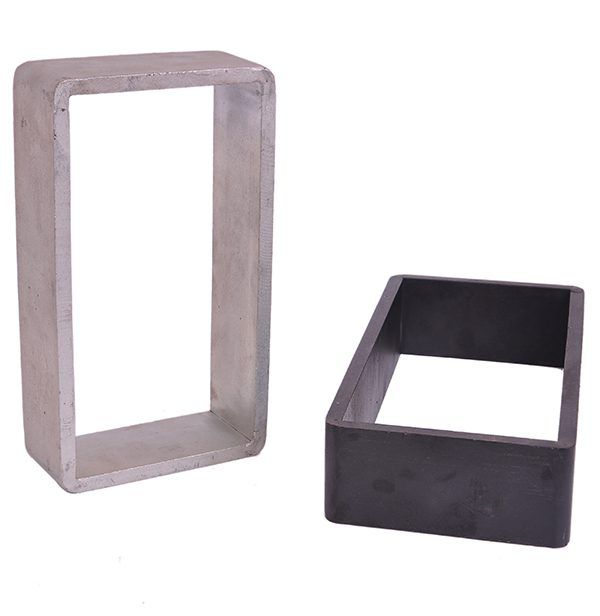

WRF rectangular frames facilitate cable and pipe passage through wall and surface openings. Designed for marine and industrial manufacturing sectors, these frames integrate with WMR modules and provide fire, dust, and water ingress protection across multiple material options.
WRF frames enable controlled transit of cables and pipes through structural openings in marine and industrial environments. Primary applications include ship decks and engine rooms where external protection of utilities is required. Frames are available in multiple sizes and material specifications to match operational demands.
These frames are engineered for pressure resistance and provide barriers against fire, dust, and water penetration. Compatibility with WMR series modules optimizes installation flexibility. Welding capability allows integration into permanent structural installations.
APPLICATIONS
Primary use cases.
Marine Vessels
Ship deck and engine room cable/pipe transits with fire and water ingress protection.
Industrial Manufacturing
Wall and surface openings requiring pressure-resistant utility passage with dust and moisture barriers.
TECHNICAL DATA
Complete specifications and tolerances for the Rectangular Frame – WallMax Transits.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 11XX XXXX |
| Wall Opening Range | 1×1 to 1×10 mm |
| Weight Range | 2.2–1,000 kg |
| Packing Space | 20×20 mm |
| Frame Type | Round Squared Frame Transit |
| Material Options | Primed Steel, AISI 316, Galvanized |
