Regular Module – WallMax Cable Transits

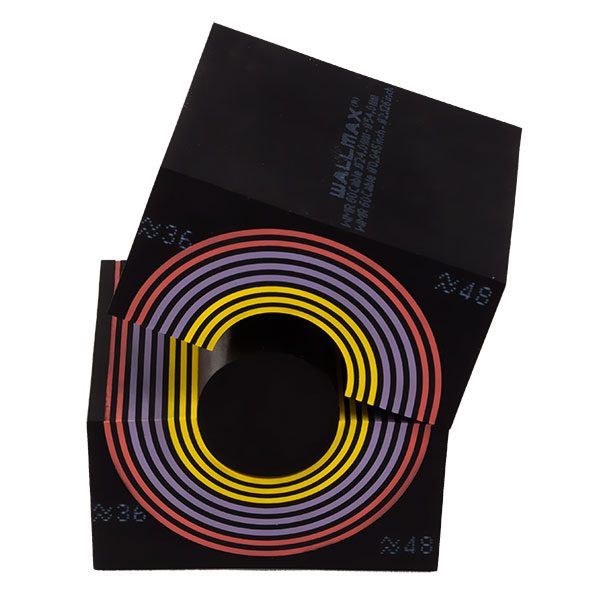

The WMR Module accommodates cable and pipe passage through a central opening with adjustable sizing. Multi-layer construction allows selective removal of layers to fit various diameters from 2.5 mm to 54 mm. EPDM rubber construction protects against external hazards in harsh environments. Optional solid core available for future cable passage provisions.
The WMR Module is engineered to facilitate the passage of cables and pipes through a central opening with adjustable sizing capability. Each half comprises separate layers that can be selectively peeled away to accommodate different diameters.
A solid core option is available to fill frame space where cable passage may be required in future installations.
EPDM rubber construction provides protection for cables and pipes against external environmental hazards and mechanical damage.
APPLICATIONS
Primary use cases.
Industrial Cable Management
Provides flexible cable and pipe routing through structural walls and frames with environmental protection.
Harsh Environment Applications
EPDM rubber material resists degradation in demanding industrial and outdoor conditions.
TECHNICAL DATA
Complete specifications and tolerances for the Regular Module – WallMax Cable Transits.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 6000 XXXX |
| Module Dimensions | 15×15 mm to 120×120 mm |
| Depth | 60 mm |
| Cable Diameter Range | 2.5 mm to 54 mm |
| Weight | 0.02 kg to 1.02 kg |
| Material | EPDM Rubber |
| Module Type | Regular Module |
