Round Frame – WallMax Pipe Transits

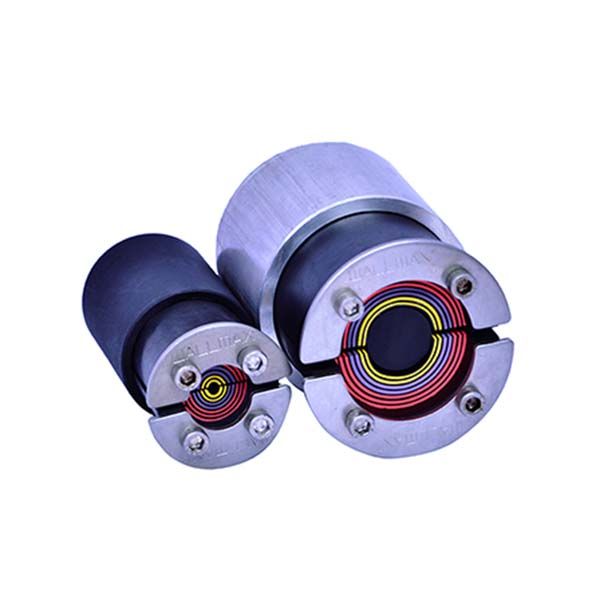

The WR Round frame provides a pipe and cable transit solution with a pre-assembled two-part structure. Galvanized AISI 316 construction accommodates single pipe passage with adjustable sizing across pipe diameters from 3.6 to 170 mm. Frames secure with bolts and optional sleeves.
The WR Round frame functions as a pipe and cable transit solution. The pre-assembled two-part structure allows passage of a single pipe through wall openings ranging from 24 to 202 mm. Sizing adjusts to fit different pipe diameters, with each model offering specific diameter openings.
Frames complete with sleeves to secure pipes and bolts to seal the pipe pathway. AISI 316 galvanized material provides corrosion resistance suitable for marine and industrial environments.
APPLICATIONS
Primary use cases.
Marine and Industrial Piping Systems
Pipe transit applications requiring wall penetration with corrosion-resistant materials in saltwater or chemically aggressive environments.
Cable Management
Single-pipe cable routing through structural walls with adjustable frame sizing for varying pipe diameters.
TECHNICAL DATA
Complete specifications and tolerances for the Round Frame – WallMax Pipe Transits.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 1111 0XXX |
| Pipe Diameter Range | 3.6–170 mm |
| Wall Opening Range | 24–202 mm |
| Weight Range | 0.05–2.01 kg |
| Material | AISI 316, Galvanized |
| Product Type | Round Frame Pipe Transit |
| Configuration | Pre-assembled two-part structure |
