SLWRS Sleeve Accessory – WallMax
SLWRS Sleeves are frame-mounted accessories for WallMax WRS systems, designed to secure cable and pipe transits. Available in multiple sizes with optional flange configurations to accommodate inner diameters from 76–200mm.

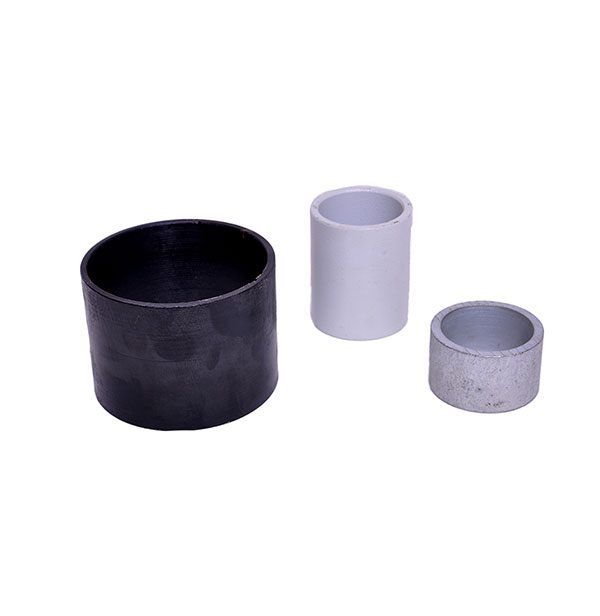

SLWRS Sleeves function as mounting accessories for WallMax WRS frames, enabling secure passage of cables and pipes through structural openings. The sleeves accommodate a range of inner diameters and are available with or without flange mounting options.
Material options include primed steel and AISI 316 stainless steel, with plastic frame configurations available. Sizing flexibility allows integration into existing WRS frame installations across varied applications.
APPLICATIONS
Primary use cases.
Cable and Pipe Transit Systems
Secures passages for electrical and fluid lines through bulkheads and structural barriers in marine and industrial installations.
Frame Mounting Applications
Provides structural support and alignment for WRS frame assemblies in modular enclosure systems.
TECHNICAL DATA
Complete specifications and tolerances for the SLWRS Sleeve Accessory – WallMax.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 11XX XXXX |
| Inner Diameter Range | 76–200mm |
| Outer Diameter Range | 89–214mm |
| Weight Range | 0.08–3.12kg |
| Material Options | Primed steel, AISI 316 stainless steel, plastic frame |
| Configuration | With or without flange |
