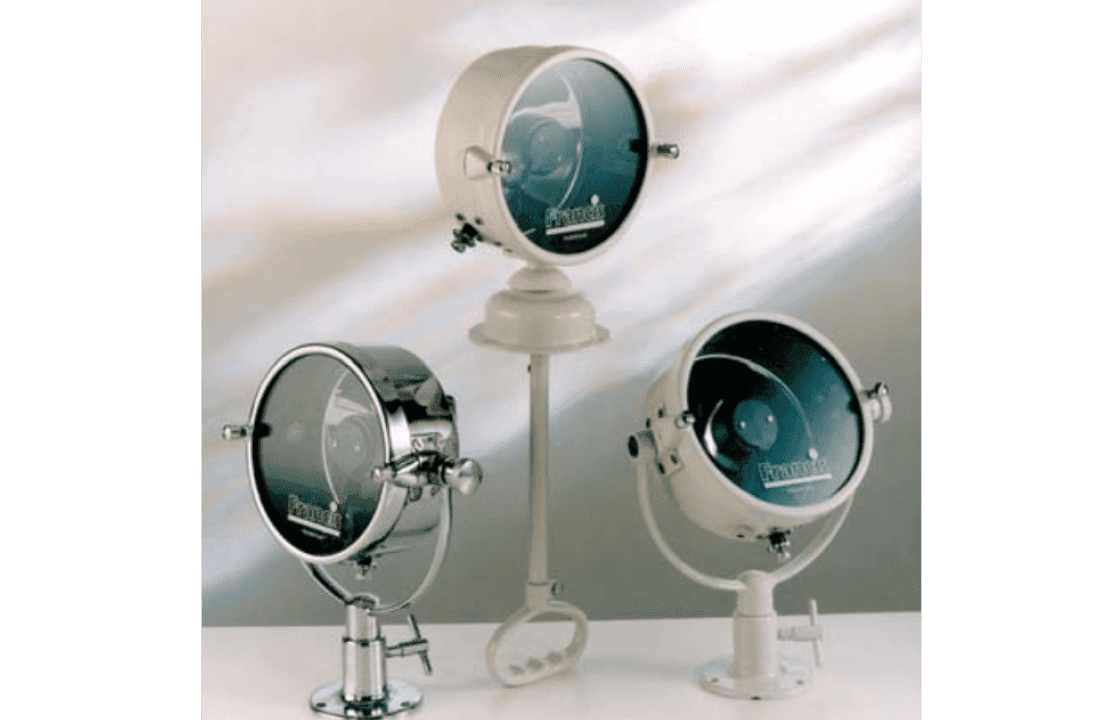

Small Vessel Searchlights – Francis MK1 & M12
Tungsten halogen manually operated searchlight for small vessel navigation. IP65 sealed, S.O.L.A.S approved unit constructed from marine grade stainless steel with 450° pan rotation and external lamp focus adjustment.
The Francis FR230 searchlight range operates in demanding maritime and land-based environments. Designed for smaller vessels where durability and corrosion resistance are critical, these units deliver 600 m effective range with manual pan and focus control.
Construction uses marine grade stainless steel with toughened front glass and parabolic reflector. IP65 sealing protection and S.O.L.A.S certification ensure compliance for navigation and lifeboat applications.
APPLICATIONS
Primary use cases.
Small Vessel Navigation
Primary navigation searchlight for boats and small commercial vessels requiring manual operation and compact form factor.
Lifeboat Systems
S.O.L.A.S certified for emergency and lifeboat searchlight applications.
Coastal Operations
Suitable for harbor, port, and coastal surveillance where 600 m effective range meets operational requirements.
TECHNICAL DATA
Complete specifications and tolerances for the Small Vessel Searchlights – Francis MK1 & M12.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A2200 / A2201 |
| Voltage | 12 V DC / 24 V DC |
| Power Consumption | 50 W / 100 W |
| Lamp Type | Tungsten Halogen |
| Lamp Life | 3,000 hours |
| Effective Range | 600 m |
| Pan Rotation | 450° |
| Sealing Rating | IP65 |
| Reflector | Parabolic glass |
| Front Glass | Toughened |
| Material | Marine grade stainless steel |
| Focus Adjustment | External manual |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
International Convention for Safety of Life at Sea
Unit meets S.O.L.A.S approval requirements for maritime navigation equipment on small vessels and lifeboats.
IP65
Dust-tight and water jet resistant sealing protection for marine environments.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What voltage options are available?
Is this unit S.O.L.A.S certified?
What is the effective illumination range?
How is lamp focus controlled?
What materials are used in construction?
What is the lamp service life?
