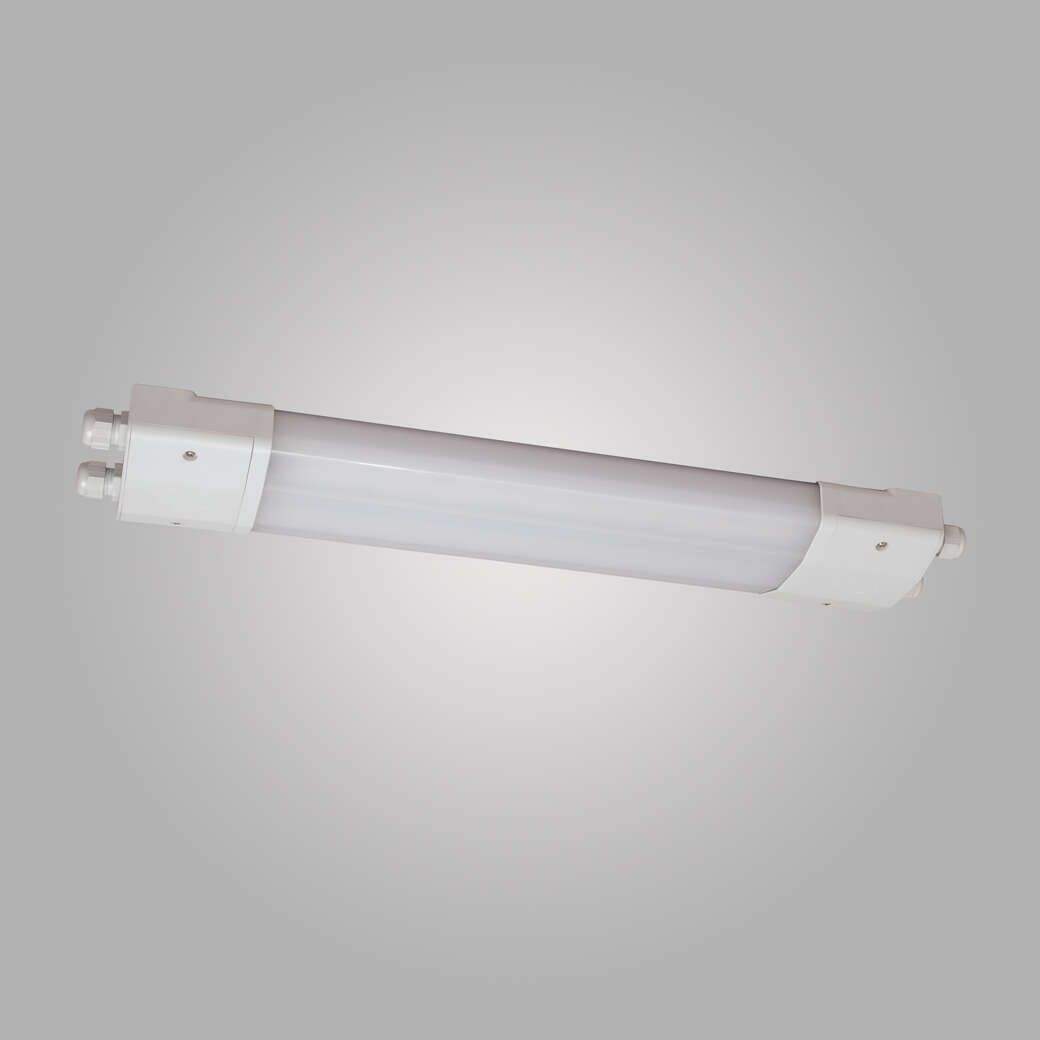

TL Vario M – Watertight LED Luminaire
The TL Vario M is a watertight luminaire for engine rooms and passageways. Reinforced polyester housing with clear polycarbonate cover provides IP66/67 protection and impact resistance. Rated for 20W at 220-240V AC with Linear LP LED modules.
The TL Vario M is a watertight luminaire designed for multipurpose applications in marine environments. The unit features reinforced polyester housing and opal polycarbonate cover construction to withstand mechanical impacts and prevent water ingress into the sealed light source.
Suitable for engine rooms, passageways, and other enclosed spaces requiring reliable LED illumination. Four M20 cable entries accommodate standard marine wiring configurations. UV-resistant materials ensure durability in varied operational conditions.
APPLICATIONS
Primary use cases.
Engine Rooms
Watertight construction and impact resistance suit high-moisture, vibration-prone engine compartments.
Passageways
Compact form factor and robust housing provide reliable lighting in crew passages and corridors.
TECHNICAL DATA
Complete specifications and tolerances for the TL Vario M – Watertight LED Luminaire.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 5145000500-xxx |
| Voltage Input | 220-240V AC |
| Power Consumption | 20W |
| Frequency | 50-60 Hz |
| Light Source | Linear LP LED Modules |
| Housing Material | Reinforced polyester |
| Cover Material | Opal polycarbonate |
| Cable Entries | 4x M20 |
| IP Rating | IP66/67 |
| Impact Resistance | Impact-proof design |
| UV Resistance | UV-resistant materials |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66/67
Dust-tight and water-resistant enclosure rating. IP66 provides protection against powerful water jets; IP67 rated for temporary immersion.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What IP rating does the TL Vario M provide?
What cable entry options are available?
What is the power consumption?
Is the luminaire suitable for outdoor use?
SUPPLEMENTARY FILES
Data Sheets, Manuals, and Technical Specifications.
