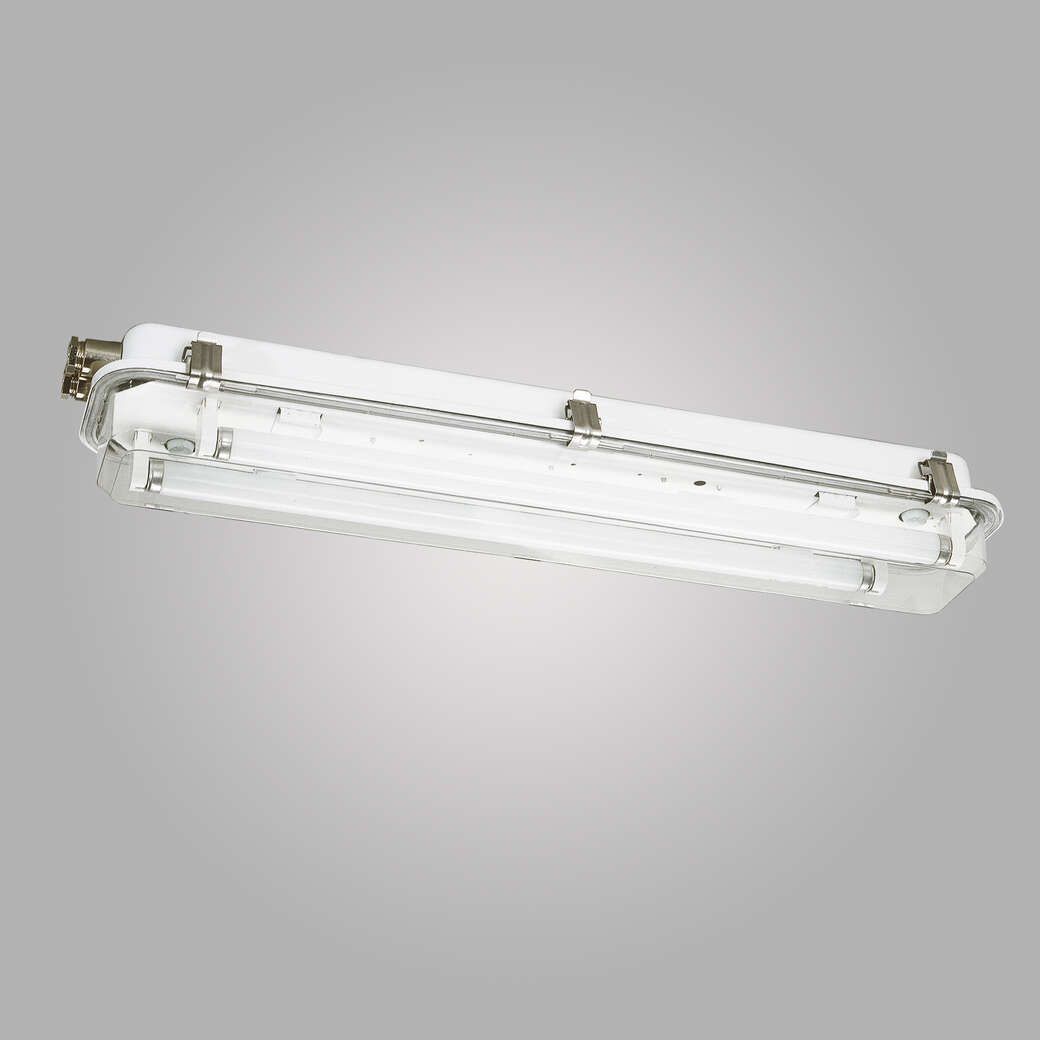

TL40 – Watertight Luminaire
The TL40 is a watertight luminaire for engine rooms, workshops, stores, passages, and outdoor areas exposed to water. Galvanized steel housing with clear polycarbonate cover provides IP67 protection and impact resistance. Available in LED or fluorescent configurations.
The TL40 watertight luminaire is engineered for marine and industrial environments requiring sealed light sources. The galvanized steel housing and polycarbonate cover prevent water ingress while withstanding mechanical impact. Four M20 cable glands accommodate standard conduit connections.
Polycarbonate covers are available in clear or opal finishes. The light source is accessible for maintenance without compromising the seal. UV-resistant construction extends service life in outdoor applications.
APPLICATIONS
Primary use cases.
Engine Rooms
Sealed luminaire prevents water and moisture ingress in high-humidity marine engine spaces
Workshops and Storage
Durable lighting for industrial facilities with water exposure or washdown requirements
Outdoor Passages
Weather-resistant fixture for external deck areas and covered outdoor work zones
TECHNICAL DATA
Complete specifications and tolerances for the TL40 – Watertight Luminaire.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number (LED) | 5105012000-xxx |
| Part Number (Fluorescent) | 5105000100-xxx |
| Voltage | 220-240 V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 20-28 W |
| Light Source | T8 Fluorescent Tubes or LED |
| Housing Material | Galvanized Steel |
| Cover Material | Polycarbonate (Clear or Opal) |
| IP Rating | IP67 |
| Cable Glands | 4x M20 |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP67
Complete dust protection and temporary immersion protection up to 1 meter for 30 minutes
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the IP67 rating?
Can the polycarbonate cover be replaced?
What are the cable gland specifications?
Is UV resistance included?
What are the available light source options?
