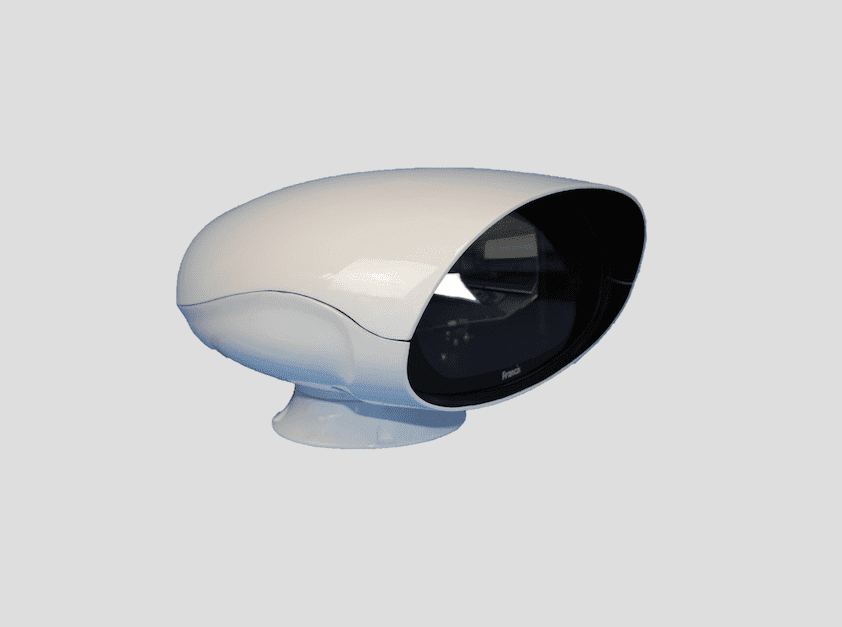

Voyager 2 Premium Searchlight – Francis V-500
The Francis Voyager 2 is a marine searchlight available in Xenon, LED, EM arc, or Halogen configurations. Designed for yachts, patrol boats, and fast craft, it delivers light output ranges from 1,000 to 4,800 meters with IP66 rating and marine-grade stainless steel construction. Optional remote control with RS485 connectivity and integrated thermal imaging (336×265 resolution, 600m range) are available.
The Francis Voyager series searchlight is available in four light source configurations: Xenon, LED, EM arc, or Halogen. Each variant delivers different operational characteristics suited to specific mission requirements.
Standard features include a parabolic glass reflector, toughened front glass, and IP66 environmental rating. The unit operates on 24V or 230V supply with power consumption between 100W and 250W depending on lamp selection.
Remote control operation is available with RS485 or Fibre Optic TCP/IP connectivity options. PC control software is included. An optional FLIR thermal camera module provides 336×265 resolution imaging with effective range to 600 meters.
APPLICATIONS
Primary use cases.
Security Operations
Perimeter surveillance and threat detection for maritime security installations.
Patrol Vessels
Operational lighting for coast guard, naval, and law enforcement patrol craft.
Leisure Yachts
Navigation and deck lighting for commercial and private yacht operations.
Fast Attack Craft
High-performance illumination for rapid-response and tactical maritime platforms.
TECHNICAL DATA
Complete specifications and tolerances for the Voyager 2 Premium Searchlight – Francis V-500.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Numbers | A7180 / A7196 / A7183 |
| Voltage Supply | 24V DC or 230V AC |
| Power Consumption | 100W – 250W |
| Lamp Life | 300 – 33,000 hours (varies by lamp type) |
| Effective Range | 1,000 – 4,800 meters |
| Environmental Rating | IP66 |
| Construction Material | Marine-grade stainless steel |
| Optical Element | Parabolic glass reflector with toughened front glass |
| Connectivity Options | RS485 or Fibre Optic TCP/IP |
| Optional Thermal Imaging | FLIR module, 336×265 resolution, 600m range |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP66
Dust-tight and water-jet resistant enclosure rating suitable for marine environments.
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What light source options are available?
What connectivity options are supported?
Can a thermal camera be integrated?
What voltage options are available?
What is the effective illumination range?
Is the unit suitable for marine environments?
