WM Mini Cable Transit Frame – WallMax

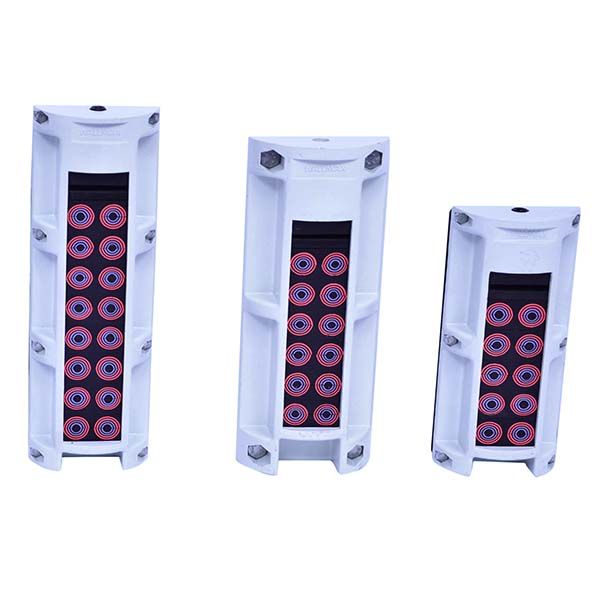

Lightweight aluminum rectangular frame for sealing cable and pipe passages through cabinet ingress points. Installs from inside or outside. Pre-assembled with integrated expander and packing space for module combinations. Available in two versions: Mini Top with compression unit, and Mini Black with rear expander access.
The WM Mini Frame provides a lightweight mounting solution for cable and pipe transits through cabinet openings. Cast aluminum construction with integrated expander accommodates module combinations. Flexible installation orientation supports mounting from either cabinet interior or exterior.
Two configurations available: Mini Top features a compression unit for sealed cable management; Mini Black provides rear-access expander unit design. Both versions ship pre-assembled and pair with WMC modules for complete transit solutions.
APPLICATIONS
Primary use cases.
Cabinet Cable Management
Seals cable and pipe passages through cabinet walls and bulkheads to maintain environmental integrity and organization.
Industrial Control Enclosures
Manages multiple cable entries in control panels and electrical enclosures with modular packing options.
TECHNICAL DATA
Complete specifications and tolerances for the WM Mini Cable Transit Frame – WallMax.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 202X XXXX |
| Material | Cast Aluminum |
| Frame Dimensions | 100×40 to 150×150 mm |
| Packing Space | 100×40 to 120×120 mm |
| Weight Range | 0.650 to 6.932 kg |
| Product Type | Mini Rectangular Frame Transit |
