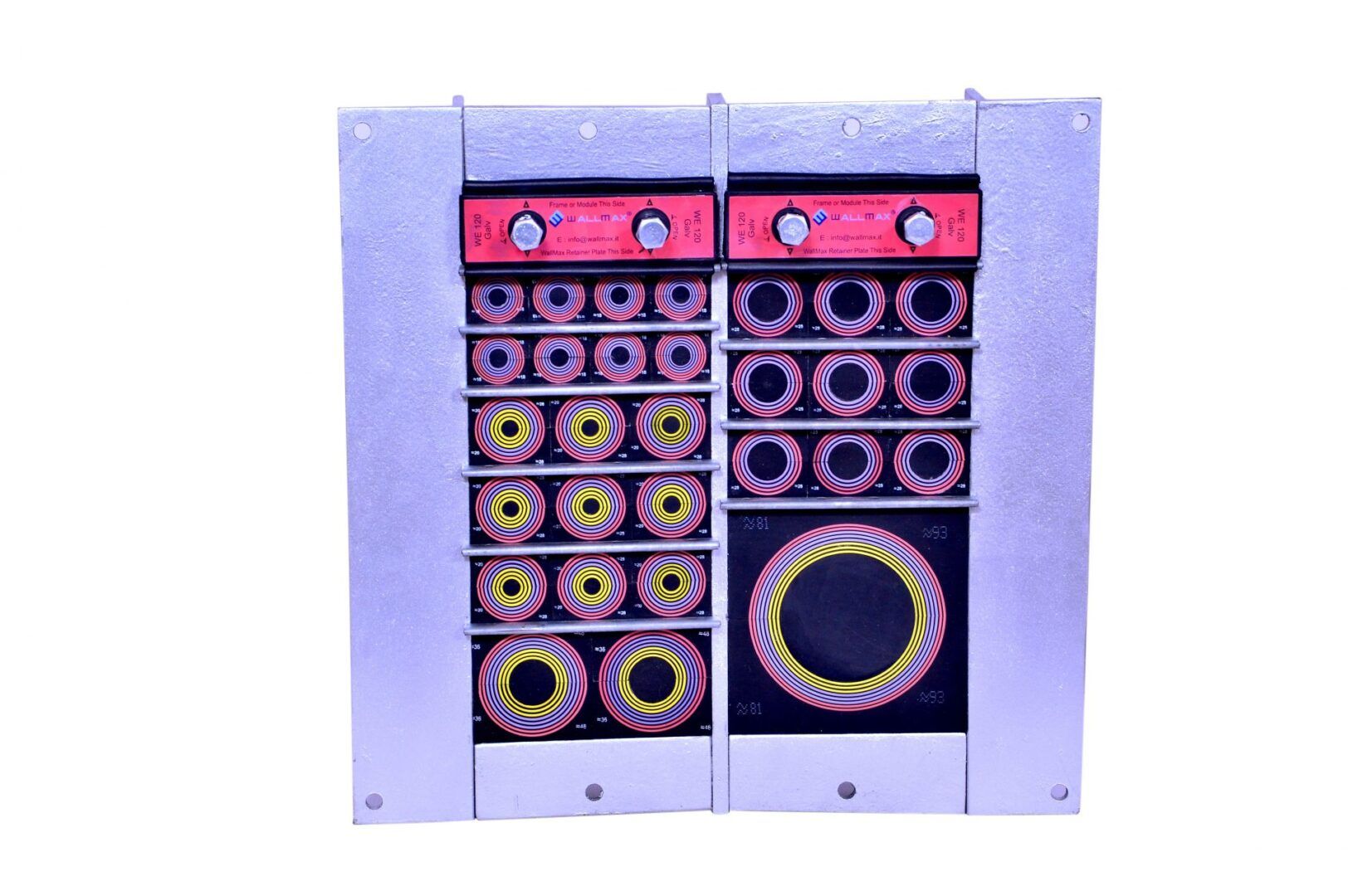

WMF Modular Cable Transit Frame – WallMax
Modular rectangular frame system for cable and pipe transits. Assembled from separate components using bolts and nuts, enabling flexible configuration around existing installations without costly or time-consuming modifications.
The WMF Modular Cable Transit Frame accommodates cable and pipe routing through wall passages. Its modular design permits assembly of individual components around existing installations, allowing reconfiguration without disassembly of pipe combinations.
Available in angular and flat module configurations, the frame supports single or multiple opening layouts. Bolt and nut assembly enables field adaptation to varying installation requirements.
APPLICATIONS
Primary use cases.
Industrial Wall Passages
Cable and pipe routing through structural walls in manufacturing and processing facilities.
Building Infrastructure
Modular transit solutions for multi-service wall penetrations in commercial and industrial buildings.
TECHNICAL DATA
Complete specifications and tolerances for the WMF Modular Cable Transit Frame – WallMax.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 1033 XXXX |
| Frame Dimensions | 230×252 mm to 410×252 mm |
| Weight Range | 0.650 kg to 6.932 kg |
| Packing Space | 120×120 mm |
| Material | Galvanized steel |
| Configuration | Modular rectangular frame transit with angular and flat modules |
