WRHFF Cable Transit Frame – WallMax

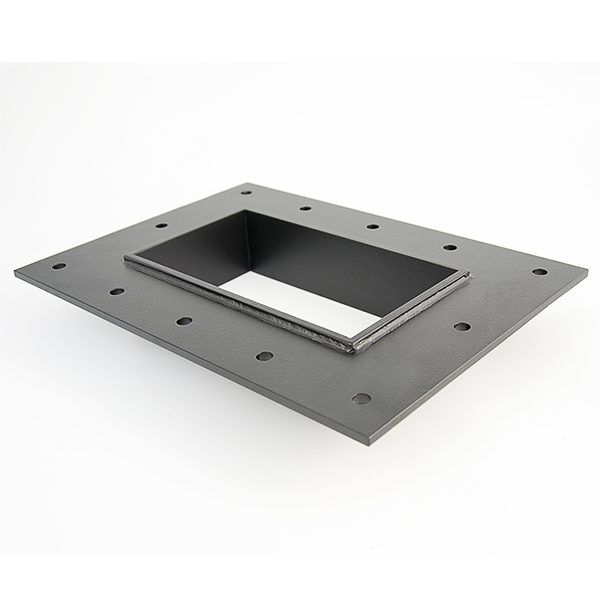

Rectangular frame designed for cable and pipe transits through wall and surface openings. Features 6mm holed flange for bolted or cast mounting. Suitable for marine and industrial applications where welding is not feasible.
The WRHFF is a rectangular transit frame engineered for cable and pipe passage through structural openings. The holed flange design (6mm holes) enables installation via bolting or casting attachment, eliminating the need for welding. This frame is optimized for use with WMR series modules and performs effectively across marine, manufacturing, and industrial sectors.
Available in multiple sizes and material options including primed steel, AISI 316 stainless, galvanized steel, and aluminum. The pressure-resistant construction accommodates varied environmental and operational demands.
APPLICATIONS
Primary use cases.
Marine Applications
Designed for marine industry installations requiring pressure-resistant cable and pipe transits through hull and bulkhead openings.
Industrial Manufacturing
Suitable for manufacturing facilities requiring cable management through walls and structural surfaces without welding.
TECHNICAL DATA
Complete specifications and tolerances for the WRHFF Cable Transit Frame – WallMax.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | 71 102X XXXX |
| Frame Type | Rectangular Transit Frame |
| Dimensions (Range) | 230×252 mm to 410×252 mm |
| Weight (Range) | 3.408–9.9 kg |
| Packing Space | 120×120 mm |
| Flange Hole Diameter | 6 mm |
| Material Options | Primed Steel, AISI 316, Galvanized Steel, Aluminum |
