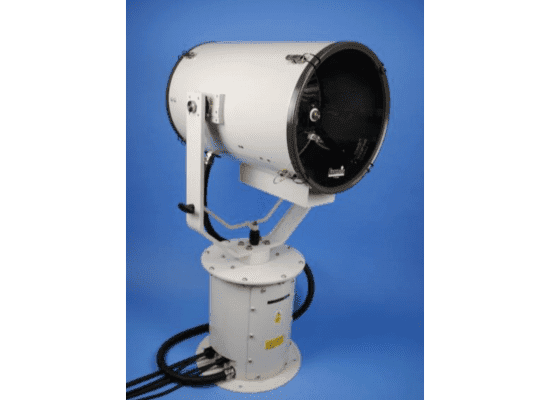

Xenon Prison Grade Searchlights – Francis FX380RC
The Francis FX380RC is a 1,000W xenon searchlight designed for security and prison applications. It features a precision electro-formed nickel reflector, variable speed pan/tilt control via joystick, RS485 connectivity, and IP56/IP66 rated enclosures. Immediate full brilliance on switch-on with instant re-strike capability and no cooling-down time.
The Francis FX380RC Prison and Security grade Remote Controlled Searchlight is engineered for high-demand operational environments. The unit incorporates a precision electro-formed nickel reflector that resists impact and shattering. Construction materials are selected for durability in harsh conditions.
Control features include full variable speed pan/tilt via joystick control panel with RS485 interface and auto home position setting. The searchlight delivers immediate full lamp brilliance upon switch-on and instant re-strike without cooling-down time. Toughened front glass is standard; optional metal guard available.
APPLICATIONS
Primary use cases.
Prison Security
Perimeter surveillance and remote monitoring in correctional facilities
Security Operations
Remote-controlled illumination for security checkpoints and restricted areas
TECHNICAL DATA
Complete specifications and tolerances for the Xenon Prison Grade Searchlights – Francis FX380RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7066 / A7065 |
| Power Output | 1,000 W |
| Voltage Options | 115 V / 230 V |
| Lamp Life | 2,000 hrs |
| Effective Range | 7,200 m |
| Pan Rotation | 385° with tilt and elevation control |
| Control Interface | RS485 joystick control panel |
| Reflector | Precision electro-formed nickel |
| Front Lens | Toughened glass with optional metal guard |
| Enclosure Rating | IP66 gearbox, IP56 searchlight, IP56 PSU |
| Material | Weather-proof construction |
| Lamp Ignition | Instant re-strike, no cooling time required |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Ingress Protection
Gearbox IP66, searchlight head IP56, power supply unit IP56
