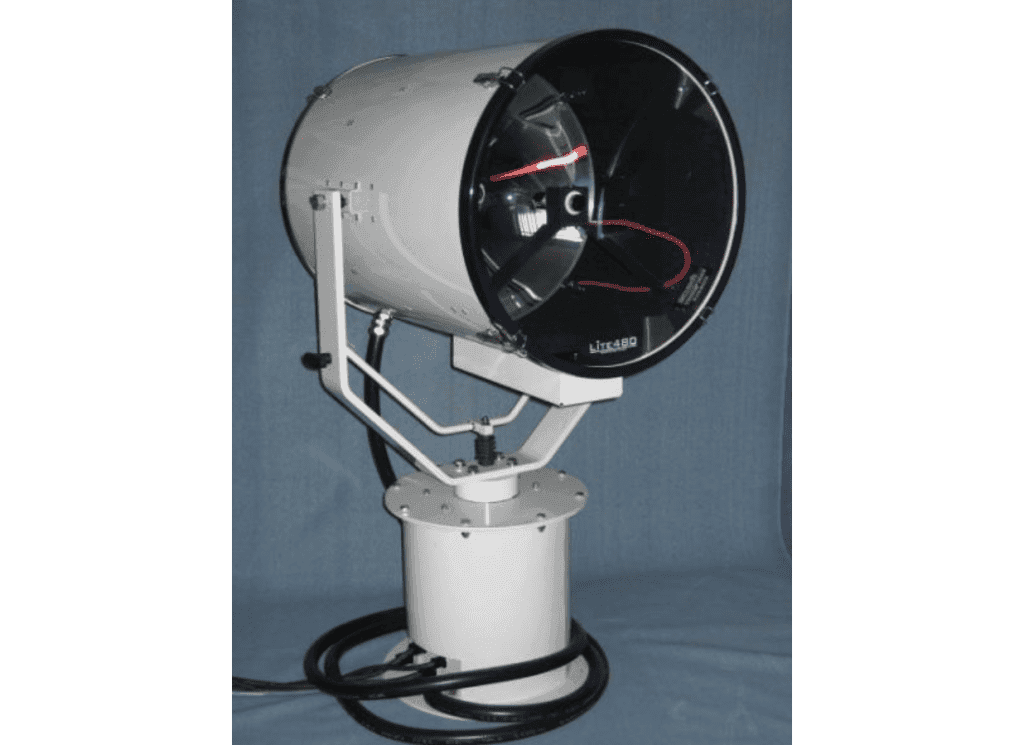

Xenon Prison Grade Searchlights – Francis FX480RC
The Francis FX480RC is a 1,000W xenon searchlight engineered for prison and security applications. It features a precision electro-formed nickel reflector, variable speed pan/tilt control via joystick, and RS485 connectivity. Available in 115V or 230V configurations with IP56/IP66 rated enclosures.
The FX480RC incorporates design features for demanding operational environments. The xenon lamp delivers immediate full brilliance on switch-on with instant re-strike capability and no cooling-down requirement. The precision electro-formed nickel reflector resists shattering under impact.
Control is managed through a joystick panel with variable speed adjustment and auto home position setting. Pan rotation extends 385° with independent tilt and elevation control. RS485 interface enables remote operation and integration with security systems.
Construction uses marine-grade stainless steel with toughened front glass. Optional metal guard available. Gearbox rated IP66; searchlight and power supply unit rated IP56.
APPLICATIONS
Primary use cases.
Prison Security
Perimeter surveillance and yard illumination with remote pan/tilt control from control room. Xenon lamp provides 9,500m illumination range.
Security Applications
Fixed or mobile installation for facility monitoring, checkpoint illumination, and emergency response lighting.
TECHNICAL DATA
Complete specifications and tolerances for the Xenon Prison Grade Searchlights – Francis FX480RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7056 (115V) / A7055 (230V) |
| Power Input | 1,000W |
| Voltage | 115V or 230V |
| Lamp Type | Xenon |
| Lamp Life | 2,000 hours |
| Illumination Range | 9,500 meters |
| Pan Rotation | 385° |
| Tilt/Elevation | Variable control |
| Control Interface | RS485 with joystick panel |
| Reflector | Precision electro-formed nickel |
| Housing Material | Marine-grade stainless steel |
| Front Glass | Toughened |
| Gearbox Rating | IP66 |
| Searchlight Rating | IP56 |
| PSU Rating | IP56 |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Ingress Protection
Gearbox: IP66 (dust-tight, high-pressure water jets). Searchlight: IP56 (limited dust ingress, water spray). Power Supply Unit: IP56 (limited dust ingress, water spray).
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the lamp warm-up time?
How is the searchlight controlled?
What is the maximum illumination distance?
Is the reflector impact-resistant?
What voltage options are available?
What is the expected lamp service life?
Is a protective guard available?
