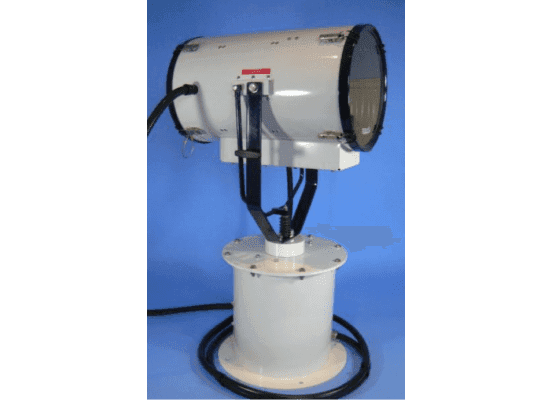

Xenon Searchlights – Francis FX300RC
150W xenon searchlight with remote pan/tilt control, RS485 interface, and variable speed joystick operation. Delivers full lamp brilliance on switch-on with instant re-strike capability. IP56–IP66 rated construction in marine-grade stainless steel. Effective illumination range to 2,460 m.
The Francis FX300RC incorporates design features for demanding marine and polar operating environments. The xenon lamp achieves full brilliance immediately upon switch-on with no warm-up delay and instant re-strike capability without cooling periods.
Remote control via joystick panel with RS485 interface enables pan rotation through 385° with independent tilt and elevation adjustment. Auto home position setting is standard. The precision electro-formed nickel reflector and toughened front glass ensure optical performance and durability in high-vibration and corrosive environments.
APPLICATIONS
Primary use cases.
Polar Operations
Extended daylight and low-light navigation in high-latitude regions requiring sustained illumination and rapid response.
Long-Range Navigation
Commercial and military vessel applications requiring 2,460 m effective illumination range with remote directional control.
TECHNICAL DATA
Complete specifications and tolerances for the Xenon Searchlights – Francis FX300RC.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Number | A7044 / A7043 |
| Power Input | 12V – 230V |
| Lamp Wattage | 150W Xenon |
| Lamp Life | 1,200 hours |
| Effective Range | 2,460 m |
| Pan Rotation | 385° continuous |
| Control Interface | RS485 with joystick panel |
| Material | Marine-grade stainless steel |
| Reflector | Precision electro-formed nickel |
| Front Optic | Toughened glass |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
Enclosure Protection
Gearbox IP66, searchlight head IP56, power supply unit IP56
TECHNICAL FAQ
Common specifications and regulatory inquiries.
What is the lamp warm-up time?
Can the searchlight be re-ignited without cooling?
What control options are available?
What is the effective illumination range?
Is this searchlight suitable for polar environments?
