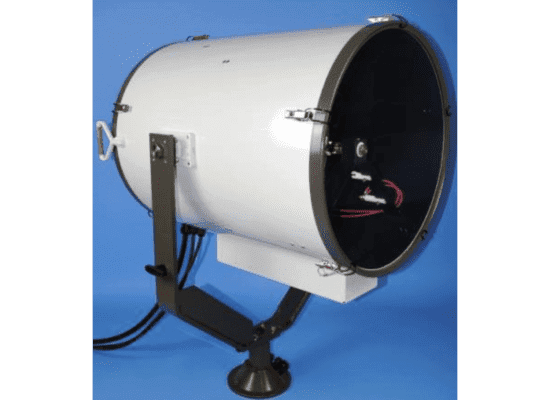

Xenon Searchlights – Francis FX560
The Francis FX560 range delivers 1,000W to 3,000W xenon searchlight output for marine and land-based security applications. Designed for long-range illumination with immediate full brilliance and instant re-strike capability, the FX560 operates in demanding coastal and terrestrial environments including collision avoidance, man-overboard response, border control, and perimeter security.
The Francis FX560 range incorporates design features for operation in demanding environments on land and sea. High power output supports applications requiring long-range illumination and superior light distribution.
Marine applications include collision avoidance and man-overboard situations. Land-based deployments span security operations, border control, prison facilities, and watch tower installations. The searchlight achieves full lamp brilliance immediately upon switch activation with no warm-up period required.
Construction uses marine-grade materials with toughened Optiwhite front glass and parabolic glass reflector. The barrel incorporates an integral heater. Pan rotation reaches 450°. Remote focus is available as an optional feature. Custom dimensions are available upon request.
APPLICATIONS
Primary use cases.
Marine – Collision Avoidance
Long-range xenon output for vessel navigation and obstacle detection in low-visibility conditions.
Marine – Man Overboard
Immediate full brilliance and instant re-strike enable rapid personnel location and recovery operations.
Security – Border Control
Extended 9,000 m range supports perimeter surveillance and intrusion detection across open terrain.
Security – Correctional Facilities
Durable construction and reliable operation for continuous watch tower and fence-line illumination.
Security – Perimeter Watch
Marine-grade construction withstands coastal salt spray and harsh weather exposure.
TECHNICAL DATA
Complete specifications and tolerances for the Xenon Searchlights – Francis FX560.
| PARAMETER | SPECIFICATION |
|---|---|
| Part Numbers | A2213 (1kW), A2214 (2kW), A2215 (3kW) |
| Power Output | 1,000 W / 2,000 W / 3,000 W |
| Voltage Input | 115 V / 230 V AC |
| Lamp Life | 3,000 hours |
| Illumination Range | 9,000 m |
| Material | Marine Grade |
| Front Glass | Toughened Optiwhite |
| Reflector | Parabolic glass |
| Enclosure Rating | IP56 (searchlight and PSU) |
| Pan Rotation | 450° |
| Lamp Ignition | Instant re-strike, no cooling time required |
| Startup | Immediate full brilliance from switch activation |
REGULATORY COMPLIANCE
Validated by the world's leading maritime classification societies.
IP56
Searchlight and power supply unit both rated IP56 for dust and water jet protection.
